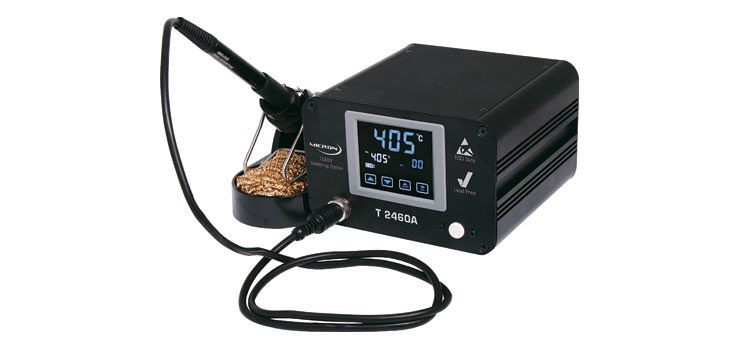

Micron Lead Free Touchscreen Soldering Station 100W

Product May Vary From Image
Our Price:
$394.90
Quantity:
Part No:
559794
Brand:
Micron
Manuf No:
T2460A
Usually Ships:
1-3 Days   More info
Ship Weight:
3.7 KG  Details
Product Description
The high power T2460A electronically temperature controlled soldering station with touchscreen incorporates a special intelligent chip microcomputer control design. It has been developed to meet the present and future lead-free soldering needs of the electronic production industry and suitable for work on SMD electronics. The ergonomic handle with a short distance between heating element and tip allows very fast heat up time and quick heat dispersion. The sensor and heat transfer technology employed ensure precise temperature regulation that is essential for making consistent, reliable soldering connections. The temperature is maintained within +/-3. The handle is fitted with a burn resistant rubber lead. The T2460A enables the user to alter tip temperature from 100 to 500C without changing tips or heating elements. The LCD touchscreen provides instant readout of temperature and allows quick selection of settings. The many features of the T2460A make it the ideal tool for service and repair technicians as well as production line soldering operations.
The Zero Voltage electronic switching design also protects voltage and current sensitive components (CMOS devices. etc.) against damaging current and transient voltage spikes/ The power unit is isolated from the AC line by a transformer and allows only 32V AC to drive the heating element.

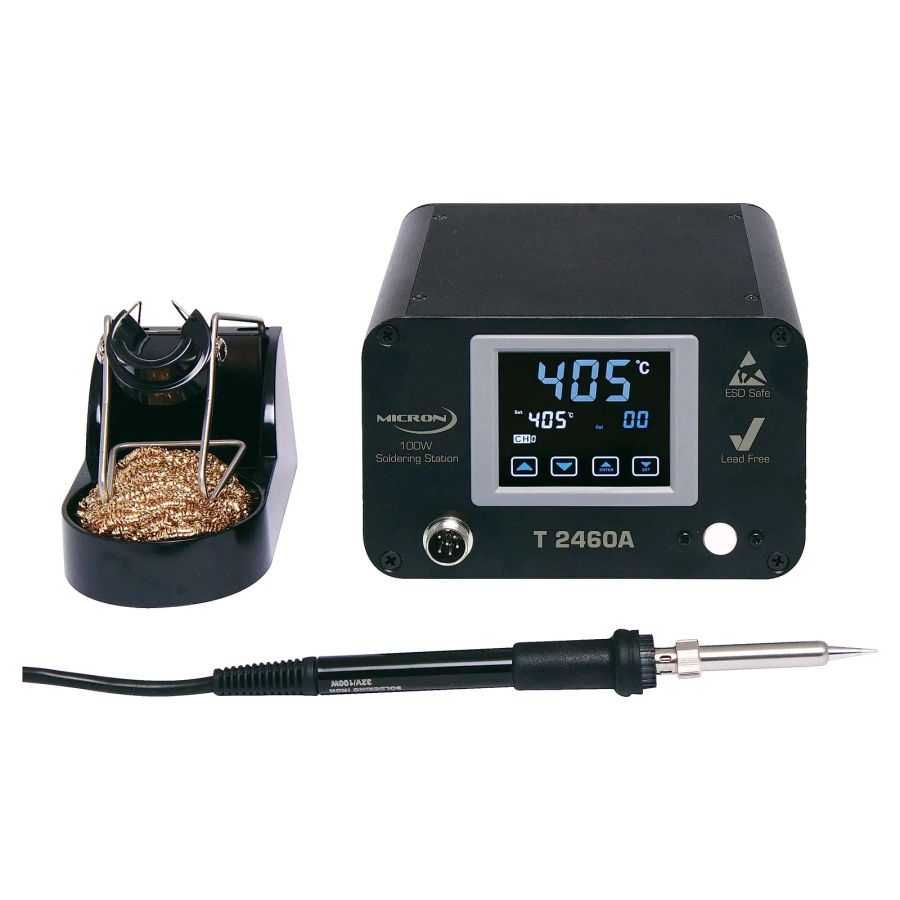

Package Includes:
Soldering station
Soldering iron handle
Iron stand
Dry tip cleaner
1mm tip
Mains connection lead

Features

  • Suitable for lead free soldering applications
  • Variable temperature control via LCD touch screen
  • Zero switching circuitry for spike suppression
  • High idle stability
  • Fast heat recovery
  • Interchangeable handle
  • Three channels for stored temperature presets

  •
  • Input: 220 - 240 VAC ~ 50 Hz
  • Output: 32 VAC / 100 W
  • Fuse (Fast type): 1A
  • Temperature Range: 100°C - 500°C
  • Temperature Correction Range: +99°~ -99°C
  • Default Set: 200°C
  • Temperature Correction Value: “00”
  • Soldering Iron: 306 K
  • Dimension: 150 x 145 x 102 mm (W x H x D)
  • Weight: 2.5 kg




Product Warranty


2 year return to base
