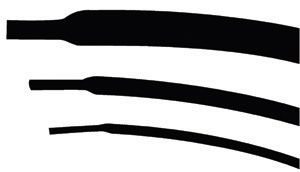

XLH Range Thin Wall High Shrink
The XLH range is a thin walled high shrink ratio tubing, which is used in
areas where the shrink diameters of the smallest and largest shrink vary a lot.
A typical use is for connectors on the end of the cord, where the tubing will
shrink around the connector, and around the wire. Because of the high shrink
ratio, it is usually possible to slip the tubing over the connector, and shrink it
onto a cord, which is significantly smaller than the connector.
* Highly flexible
* Flame retarded
* Abrasion and impact resistant
* Available in ultraviolet resistant black only
* Continuous operating temperature 75 C to 135 C
* Nominal shrink ratio 3:1
* In house cutting facility is available for cut lengths
The tubing is available on reels, or in handy kit packs with 5 by 200mm pieces of
shrink in a bag. It should be shrunk using a heatgun such as the CABAC KG2000
general purpose heatgun.
Conformant Standards MIL-1-23053/5; JIS
Material Cross-linked, thermally stabilised flame retarded polyolefin
Continuous operating temp -75 C to +135 C
Shrinkage temp > 100 C
Longitudinal shrinkage < 5%
Tensile strength 16 MPa
Breakdown voltage 25 kV/mm wall thickness
Volume resistivity 1.0 x 1014 ohm cm
Elongation at break point 400%
Water absorption 0.15% max
Flammability Passed ASTM-D-2671
UV stability Black tubing is stable
Voltage rating 600V
