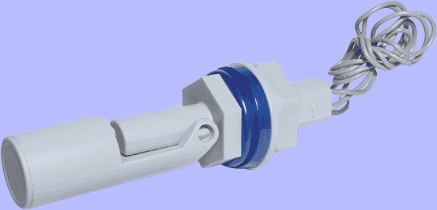

Waterproof Float Switch - 200V, 0.5A, Horizontal

[More images available]

Product May Vary From Image

Our Price:

$33.20

Quantity:

Part No:

104846

Brand:

NoBrand

Manuf No:

S1160

Usually Ships:

1-3 Days More info

Ship Weight:

0.05 KG Details

Product Description

Fully immersible. Ideal for water tank systems such as rain or waste water management, activating boat bilge pumps etc. Can be used to control pumps or electric valves when liquid levels change. Features a waterproof membrane which mounts on the inside of the tank.

Specifications:

Switch type: SPST
Switching current: 0.5A DC
Contact rating 1.5A @ 200VDC (Max)
Contact resistance: 100mΩ
Insulation restistance: >10^10 Ω
Magnetic sensitivity: 20 - 50 AT
Operate time: 0.8ms
Flying lead length: 300mm
Temperature Rating: -30 to 147 degrees C

Product Warranty

1 Year Return to Base
