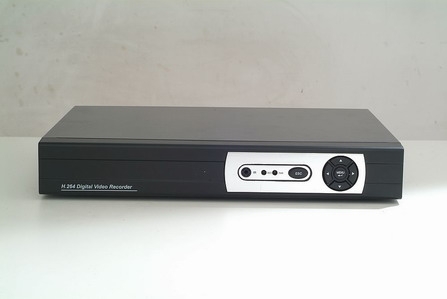

Generic 7108V Security Network Video Recorder - 8 Channel DVR H.264 Digital Video Recorder With Mouse & Remote
No Hard Drive Disk Included

System

Model

7108V

Main Processor

High performance embedded microprocessor HI3515

Operating System

Embedded LINUX

System Resources

Pentaplex function:live,recording,playback,backup & remote access

User Interface

GUI,on-screen menu tips

Display

1/4/8/9

Video

Video Standards

PAL 625 line,50 f/s;NTSC 525 line,60 f/s

Video Compression

H.264 main profile

Video Recording

CIF/QCIF

Encode capacity

Motion Detection

Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)

Trigger recording,PTZ movement,tour,alarm,email,snapshot & FTP

Audio

Audio Compression

G711A

Bidrectional Talk

Support

Record &

Playback

Recording Mode

Manual>Alarm>Video Detection>Continuous

Playback

1~16channels playback simultaneously

Search Mode

Time/Date,Alarm,Motion Detection & exact search(accurate to second)

Storage &

Backup

Space Occupation

Audio 28.8MB/H ;Video 25~450 MB/H

Record Storage

Local Hard disk and Network

Backup Mode

Network download/Flash stick/movable HDD/SATA HDD/DVD-RW

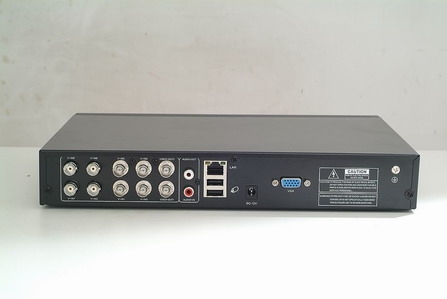

Video Input

Video Output

1channel TV output BNC,1.0Vp-p,75O,1 VGA output(optional)

Audio Input

1channel

Audio Output

1 channel

Alarm Input

N/A

Relay Output

N/A

Net Interface

RJ-45 (10M/100M)

PTZ Control

USB Interface

2 x USB2.0

Hard Disk

1 SATA ports(Max 2048G)

Environmental

Power Supply

12V/2A

Power Consumption

<10W(not include Hard disk)

Working Temperature

0C-+55C

Working Humidity

10%-90%

Atmosphere Pressure

86kpa-106kpa

Dimension

Weight

1.2KG
