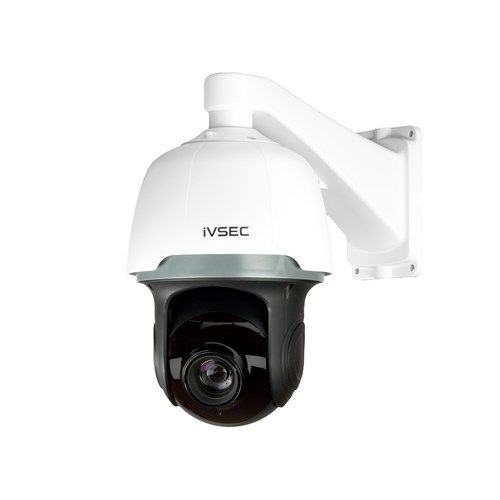

| Camera Type | PTZ |
| Image Sensor | 1/2.7 Progressive Scan CMOS |
| Maximum Video Resolution (Megapixels) | 5MP |
| Maximum Video Resolution | 25921944 |
| Lens | 4.3mm -142mm (H.FOV: 55 to 2.3) |
| Lens Type | Motorised Pan, Tilt and Zoom |
| Maximum Night IR Distance (M) | 150 |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF depends on firmware version | ONVIF (Profile S/G/T), HTTP API |
| IP Rating | IP66 |
| Operating Environment | (-)30C to 60C (-22F-149F) Humidity: 90% RH |
| Dimensions (H x W x L) mm | 206.4 x 206.4 x 351.8 mm |
| Weight (Net) | 3.7 kg |
| Accessories | IV2488X |
| Power Supply | Power over Ethernet IEEE 802.3at, DC12V |
| Power Consumption | <26 W |
| Connectors | RJ-45, DC Power Input, Audio In, Audio Out, Alarm in and out. |
| Outdoor Use | Yes |
| Vandal Resistant | Yes |
| Frames Per Second | 25 |
| Day/Night Mode | auto |
| LED Types | |
| Image Enhancement | Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Back Light,
White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Edge Recording microSD/SDHC Card | Micro SD/SDHC Card |
| Multiple Streams (encode format) | 4 Streams |
| Audio Streaming | Yes input connector for external mic |
| Protocols | TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SMTP, P2P (QR code) |
| Intelligent Video (IVS) | Face Recognition, Human &Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map |
| Cloud option (camera only) | Dropbox |
| Software | Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Power Over Ethernet | Yes |
| Ethernet | Ethernet (10/100 Base-T) |
| In The Box | Free Software available (ivsecurity.com.au/support/software), Printed quick user guide, installation template, mounting screws and plugs |
| Warranty | 3 Year Warranty |
