AXIS 01507-001 security door controller Housing 2 door(s) Ethernet, 512 MB RAM, 1GB Flash, white, UL 2043, 10-28 V

Product May Vary From Image
Our Price:
$183.85
Quantity:
Part No:
536303
Brand:
Manuf No:
01507-001

01507001
Usually Ships:
1-3 Days   More info

Ship Weight:
1.35 KG  Details
Product Description

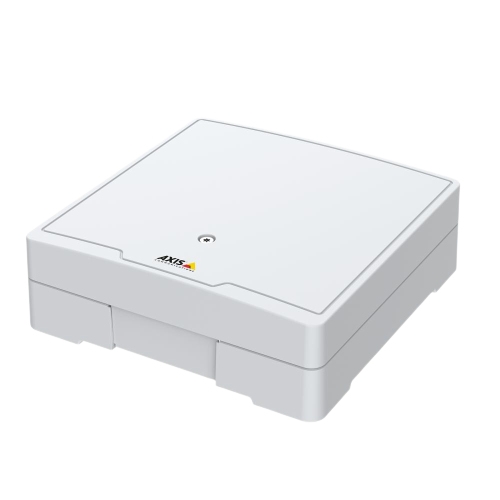

Axis 01507-001 security door controller Housing 2 door(s) Ethernet

Manufacturer: Axis
Category: Home
Sub-Category: Security Door Controllers
SKU: 01507-001
EAN: 7331021064287

Description

With door controllers from Axis, you install one smart, independent device by each door to create a scalable access control system. The open platform allows you to mix and match best-of-breed software and hardware, and enables easy integration with other systems such as video surveillance, intrusion detection, and time and attendance. AXIS A1601 Network Door Controller is ideal for advanced access management using a partner software, in mid-sized and large, multi-site installations. It has a powerful processor, expanded storage and memory, relays, and I/O ports. AXIS A1601 is powered by PoE+ and can also power connected equipment.

Specifications

Technical details
Maximum number of doors2 door(s)
Case designHousing
InterfaceEthernet
Supported network protocolsIPv4,IPv6, HTTP, HTTPSb, SSL/TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Performance
Internal memory0.512 GB
Internal storage capacity1 GB
Ethernet LANYes
Number of built-in relays2
CertificationEMC EN 55032 Class A, EN 50130–4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35 Safety IEC/EN/UL 62368-1, UL 2043, UL 294, UL 293 Environment EN 50581 Others CSA C22.2 No. 205-1983
Ethernet LAN data rates10,100 Mbit/s
Wiegand interfaceYes
Power
DC voltage range10.5 - 28 V
Operating voltage12 V
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Operational conditions
Operating temperature (T-T)-40 - 55 °C
Operating relative humidity (H-H)20 - 85%
Storage temperature (T-T)-40 - 55 °C
Weight & dimensions
Width175 mm
Weight1.2 kg
Height60 mm
Depth175 mm

Product Warranty


12 Month Return To Base
