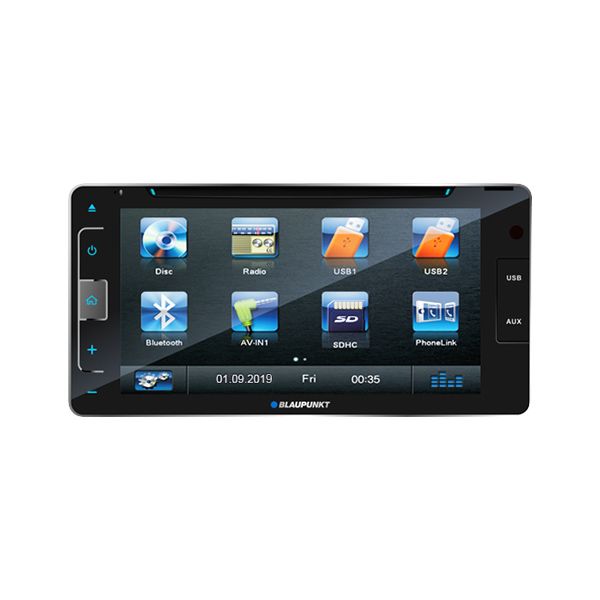

The Blaupunkt Chicago 600 is a Navigation Ready 6.75 touch screen car radio designed to fit in a number of 200mm Toyota Models with factory harness. With a 200mm Capacitive Panel and LED touch screen, the Chicago 600 can establish and display PhoneLink with Android and iPhone devices via the front USB. With addition to Bluetooth connection, phone calls can be made in a much safer and entertaining way. Operating System
– WINCE 6.0
Display
– Digital
– 6.75? Capacitance Touch Screen
– Resolution: 800(RGB) x 480
– Adjustable Brightness
– Clock / Date Display
– Clock Mode
– Radio System Languages: English (US), Chinese Traditional
Radio
– World Tuner (Switchable): Europe, OIRT, Americas, Japan
– Wave Bands: FM, AM
– Radio Data System (RDS): AF, CT, REG, PS, PTY, TA, RT
– Travelstore: FM, AM
– Band Scan / Preset Scan
– Search via frequency
– 30 Station Memory
Navigation
– Navigation-Ready
Data Carrier
– DVD, +/-R, +/-RW, -ROM
– VCD
– CD-DA, -ROM, -R/-RW
– Type Disc-Drive: Automatic Loading
– Shock Proof-drive
– Frequency Response (Hz): -3dB: 20-20,000
– USB 2.0 Compatible (Removable Storage)
– Micro SDHC (Navi)
– Storage Formats: NTFS, FAT, FAT 16, FAT 32
DVD Player
– Track up
– Fast Forward / Fast Rewind
– Position Via Progress Bar
– Repeat Chapter / Title
– Play / Pause / Stop / Resume
– Chapter Skip / Search
– Last Position Memory
– Root Menu
– Setup
– Title Menu
– Sub-Title / Audio Language
– Zoom / Angle
Media Player
– Video Formats: AVI, MPEG, RM, FLV, ASF, MP4, MKV
– Picture Formats: JPG, PNG, GIF
– Audio Formats: MP3, AAC, APE, FLAC
– MP3 Title Display: ID3-tag (Verison 1 and 2), File/Folder Names
– Album Art Display
– ID3-tag Criteria Display: Artist, Album, Song
– MP3 Folder / File Browsing
– MP3 File Search By Track Number
– Mix All, Folder
– Repeat All, Folder, Track
– Fast Forward / Fast Rewind
– Variable Bit Rates
– Number Of Files On MSD
Bluetooth
– Bluetooth 2.1 + EDR
– Supported Profiles: HFP, PBAP, A2DP, AVRCP, SPP, HID, RFCOMM
– Up to 5 device pairing
– Pairing Code: 1234 (Default)
– Hands-Free Calling via Microphone + Radio Speaker
– Key Function: Accept / Hang Up / Reject Call
– Phone Book Access (Up to 1 000 Entries By Phone)
– History Call Lists: Missed, Dialled, Received Calls
– Auto Synchronisation: On/Off
– Auto Connect / Auto Answer: On/Off
– 1 x Built-in, 1 x External Rear Microphone
Phonelink
– Smart Phone Mirroring via Front USB
– Smart Phone Touch Control via Front USB
– iPhone Supported (Mirroring only)
– Android Phone Requirements: Bluetooth HFP, A2DP
– Android Phones Supported: Most of OS Android 4.2 above
Equalizer / Amplifier
– 10 Parametric Equalizer
– Analogue Type
– Switchable Subwoofer
– Variable Subwoofer Gain (24 Steps)
– Variable Subwoofer Phase
– Variable Low-Pass Filter: 80 / 120 / 160 Hz
– Sound Presets: User, Flat, POP, Techno, Jazz, Rock, Classic, Optimal
– Balance / Fader
– Switch-on Volume (Last Volume, Programmable)
Amplifier
– 4 Channel
– 4 x 50 Watt Max. Output Power
– Sinus Power at 14.4V/1KHz: 4 x 30 Watt
Rear Zone / 2nd Monitor
– Video / Audio
Inputs / Outputs
– Radio &GPS Antenna
– 1 x Front &1 x Rear USB Standard A-type)
– 1 x Front Micro SD
– Audio / Video (Analogue): Front A/V ( 3.5 mm Jack, 0.5V) and Rear A/V RCA
– Rear View Video Camera (RCA)
– Reverse Gear, Handbrake
– 1 x Rear External Hand-free Microphone 3.5mm Jack
– Steering Wheel Remote Control
– Power Supply
– Video / Audio Out (2x, RCA Composite)
– 4-Channel Preamp Out (RCA, 3V)
– Subwoofer (1 Channel RCA, 3V)
Accessories
– User Manual
– IR Remote Control (Battery Included)
– GPS Antenna (3.5m)
– External Hands-free Microphone (3.5m)
– Connector Cable Sets
• Direct fit for many Toyota Vehicles 200mm with Factory Harness
• 4 x 50W
• Navigation Ready: Optional iGO Nextgen Mapping*
• Phonelink Mirroring via front USB: Android 2-way, iPhone 1-way
• Bluetooth Hands Free and Audio Streaming
• Built-in &External Mic
• Inputs: 2 x USB (Front &Rear) 2 x A/V (Front &Rear) 1 x Camera in
• Outputs: 4 Channel + 1 Sub Preamp, 1 x Video-Out
• Steering Wheel Control (Toyota SWC Harness Input)
• Includes: Remote Control, HF Mic, GPS Antenna
