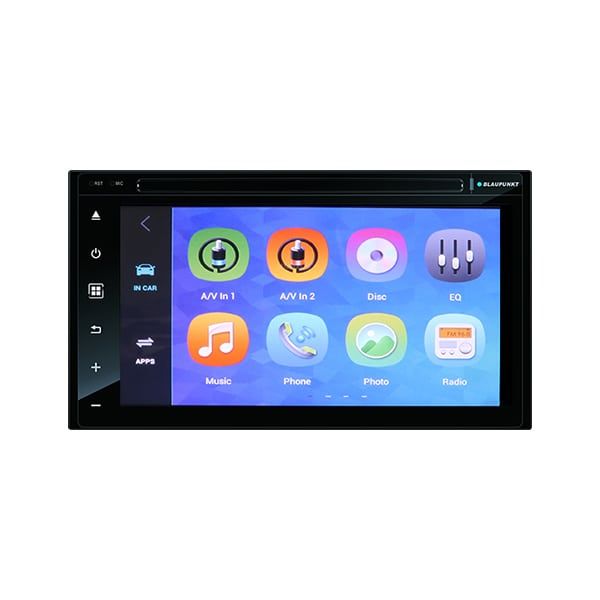

Blaupunkt KIMBERLEY 941 6.75" Touchscreen DVD with USB Mirror Link
System
– Operating System Android 4.2.2 (Jellybean)
Display
– Digital
– 6.75” TouchScreen Capacitive TFT
– Resolution : VWGA 800 x 480 pixels
– Anti-reflective
– Adjustable Brightness
– Display Switch off (15/30 sec)
– Clock / Date Display (auto sync via GPS or RDS CT)
– Clock Mode : 24 / 12 Hours
– Home Screen Folder creation (up to 6 apps by folder)
– Wallpaper Options (still, motion options, picture upload)
– Radio System Languages : English(US), Chinese Traditional
Radio
– Switchable World Tuner : Europe, OIRT, Americas, Japan
– Wave Bands : FM, AM (MW, LW)
– Radio Data System (RDS) : AF,CT,EON,PS,PTY,TA,TP,RT
– Travelstore : FM, AM
– Band Scan / Preset Scan
– Search via frequency
– Select via frequency scale
– 30 Station memory
– Frequency Response (hz) – 3dB : 30-15,000
Navigation
– Navigation-Ready
Data Carrier
– DVD, +/-R, +/-RW, -ROM
– VCD
– CD-DA, -ROM, -R/-RW
– Type Disc-Drive : Automatic Loading
– Shock Proof-drive : CD/DVD
– Frequency Response (Hz) -3dB : 20-20,000
– USB 2.0 Compatible (Removable Storage)
– Micro SD (up to 32GB), Micro SD
– Storage Formats : NTFS, FAT, FAT 16, FAT 32
DVD Player
– Track up
– Fast Forward / Fast Rewind
– Position Via Progress Bar
– Repeat Chapter / Title
– Play / Pause / Stop / Resume
– Chapter Skip / Search
– Last Position Memory
– Root Menu, Setup, Title Menu
– Sub-Title / Audio Language
– Zoom / Angle
– Dolby Digital 2.0
Media Player
– Video Formats : AVI, MP4, MPEG, MPG, H264
– Picture Formats : JPEG, JPG
– Audio Formats : MP3, WMA
– MP3 Title Display : ID3-tag (Verison 1 and 2), File/Folder Names
– Album Art Display
– ID3-tag Criteria Display : Artist, Album, Song, Composer, Year of Release, File Bitrate
– MP3 Folder / File Browsing : Without Track Interruption
– MP3 File Search : By Track Number
– Criteria Browsing : For MP3 only
– Mix All/Folder, Repeat All/Folder/Track
– Fast Forward / Fast Rewind : Via Progress Bar
– CD Text
– Gapless CD-DA Playback : Live, Concept, Classic Albums
– Variable Bit Rates
– Number Of Files On MSD : Up to ~40.000 files, Depending On Folder Files Structure
– Android Phone MP3 Control via PhoneLink
Wi-Fi/Internet Access
– Internet Access via Android USB tethering/WIFI
– Wi-Fi Hotspot
Pre-installed Apps
– Built-in Internet Browser
– Navigation : Waze
– Others : Spotify, Twitter, Facebook, AccuWeather, Calculator, Calendar, Downloads, FileExplorer, PhoneLink
Bluetooth
– Bluetooth 2.1 With EDR
– Supported Profiles : HFP, PBAP, A2DP, AVRCP, SPP, HID, RFCOMM
– 1 x Device Pairing
– Pairing Code : 1234 (Default)
– Hands-Free Calling via Microphone + Radio Speaker
– Voice Dial (If Supported By Cell Phone)
– Key Function : Accept / Hang Up / Reject Call
– Phone Book Access (Up to 1,000 Entries By Phone)
– History Call Lists : Missed, Dialled, Received Calls
– Auto Synchronisation : On/Off
– Auto Connect / Auto Answer : On/Off
– Favourites (Manually)
– 2nd Call Handling (Call Wait / Call Hold)
– Built-in + External Rear Microphone
PhoneLink
Smart Phone Mirroring (Via USB)
Smart Phone Touch Control (Android only)
Smart Phone App (PhoneLink App)
Android Phone Requirements : Version 4.2 or above
Android Phones Supported(tested) : most of OS, Android 4.2 or above
Equalizer
– 10-band Parametric Equalizer
– Analogue type
– Bass 1, Bass 2, Mid, Treble 2, Treble 1
– Variable Q-Factor By Band
– Switchable Subwoofer
– Variable Subwoofer Gain (24 Steps)
– Variable Subwoofer Phase
– Variable High-Pass Filter : 63 / 100 / 120 / 150 / 180 Hz
– Variable Low-Pass Filter : 55 / 85 / 120 / 160 Hz
– Sound Presets : My EQ, Flat, POP, Rock, Optimal, Jazz, Classic, User
– Balance / Fader (+/- 40 Steps)
– Source Specific Volume : DVD, Radio, A/V1, A/V2, Navigation, Media
– Switch-on Volume (Last Volume, Programmable)
Amplifier
– 4-channel
– 4 x 50 Watt Max. Output Power
– Sinus Power at 14.4V : 4 x 30 Watt
Rear Zone / 2nd Monitor
– Video / Audio
– Rear Zone Sources (Mirror of Front)
Inputs / Outputs
– Radio, GPS Antenna
– TMC (Antenna Via FM Antenna)
– 3 x Rear USB (Standard A-type)
– 1 x Front Micro SD
– Audio / Video (Analogue) : RCA
– Rear View Video Camera : RCA
– Rear View Audio / Video Camera : RCA
– Reverse Gear, Handbrake
– 1 x Rear External 3.5 mm Jack
– Steering Wheel Control
– Power Supply
– Video/Audio Out (2x, RCA Composite)
– 4-Channel Preamp Out (RCA, 2V)
– Subwoofer (1 Channel RCA, 2V)
Includes
– User Manual, Remote Control; HF Microphone; GPS Antenna, USB Ext. Lead
