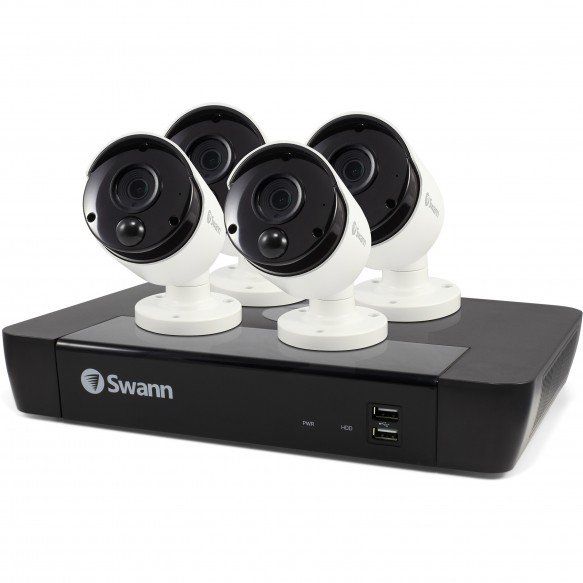

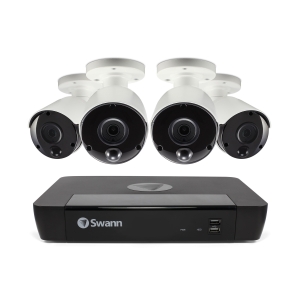

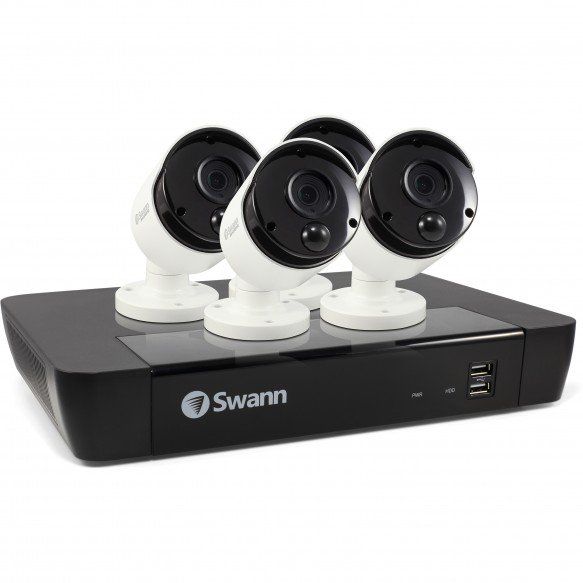

Swann SWNVK-885804 8-Channel Security System
Features
- Resolution: 4K (8MP)
- Night Vision Distance: 40m
- Viewing Angle: 93°
- Camera Usage: Indoor/ Outdoor - IP66,
Weatherproof
- NVR HDD Size: 2TB
- Cable Type:POE (NVR)
- App: HomeSafe View, View 24/7
- Warranty: 12 Months
Overview
Innovative Thermal-Sensing Motion Detection
Technology
Swann’s True Detect PIR Thermal Sensing technology
detects motion by heat, such as from people & cars, to trigger recording and
push notifications. This virtually eliminates false triggers, like plants moving
with the wind, to only capture events with security relevance.
Get amazing detail with 4K Ultra HD which is 4x the
resolution of 1080p Full HD. Zoom in closer with unprecedented clarity to
essential evidence such as license plates, facial features and clothing
details.
Cameras

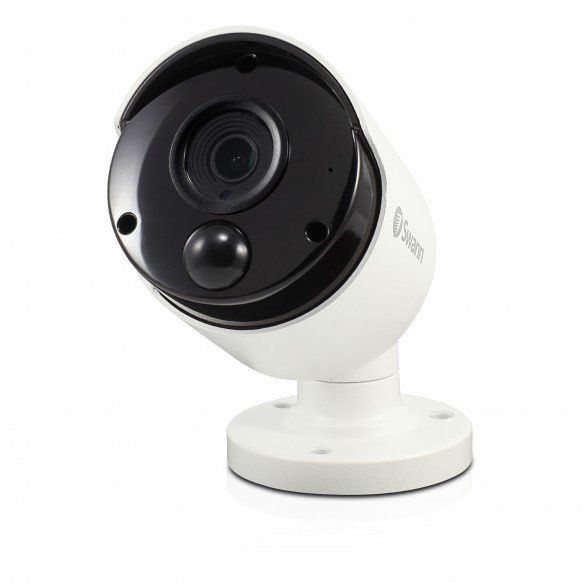

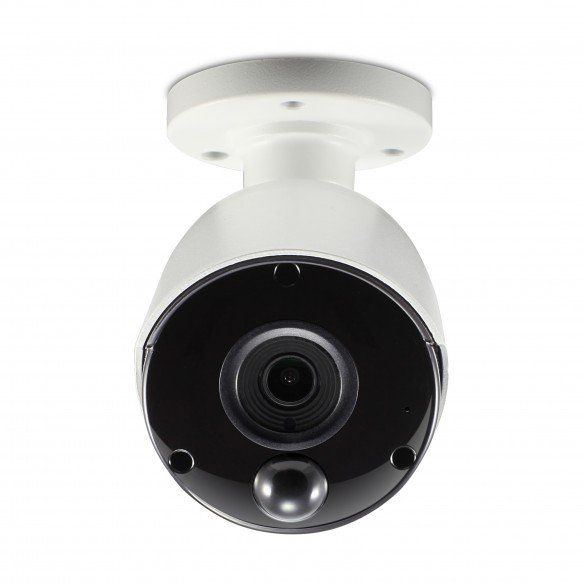

The 4 IP security cameras NHD-885MSB come with Ethernet
cables and are weatherproof, built tough for the outdoors or indoors. See in the
dark up to 40 metres with the camera’s powerful infrared night vision.
Enjoy easy camera installation with Power over Ethernet
(PoE) as each camera is connected via Cat 5 network cable to transmit power,
video and audio.
Expand your security system by adding up to 4 more
cameras for a complete 8 channel home security system, suitable for medium-sized
businesses & detached homes.
Smartphone Integration
The HomeSafe View app ensures you’ll always be connected
to your home or business, allowing you to see your cameras on your smartphone or
tablet, live or playback, from wherever you are in the world.
True Detect Thermal Sensing Motion
Detection
The camera features a True Detect PIR sensor that
triggers auto recording & push notifications when it senses heat, so it’ll
only record relevant events. Warm objects, like people & cars, are more
relevant for security.
Accurate Push Notifications
You’ll get push notifications when cameras detect
movement from warm objects, such as people and cars allowing you to act
immediately and potentially prevent any costly security incident.
Crime Prevention: the true value of True
Detect
Pixel-based Motion Detection tends to generate a lot of
false triggers, such as plants moving and birds. If your recorder is set up to
email you in every Motion Detection event and most of events are irrelevant,
you’ll most likely turn the email alerts off, and when a real security incident
happens, you’ll only find out when you get home.
With True Detect, Motion Detection is only triggered by
heat-generating objects, like people and cars, which represent a real threat to
your property. When an event is detected, you’ll get a push notification on the
HomeSafe View app, allowing you to see the scene in real time and act swiftly to
prevent any security incidents which could have had a much higher financial
impact than the cost of this security system.
Scenario |
Pixel Motion
Detection |
Thermal
Sensing Motion Detection |
|
Any movement in the image
triggers recording: birds, plants moving etc |
Only heat-generating objects
trigger recording: people, cars etc |
Tree moves
with wind: |
REC
It records
Not Relevant
Tree branches moving with
wind trigger an irrelevant recording |
No recording
No False
Trigger
Tree doesnt trigger
recording because its not a warm object |
Person walks
through: |
REC
It records
Relevant
Movement from tree, dogs
& person triggers recording |
REC
It records
Relevant
Moving person triggers
recording because its a large warm object |
Bedsheets
move: |
REC
It records
Not Relevant
Bedsheets moving due to
wind trigger irrelevant recording |
No recording
No False
Trigger
Bedsheets dont trigger
recording because theyre not emitting heat |
Moving
car: |
REC
It records
Relevant
Records car because its a
movement in the image |
REC
It records
Relevant
|
Audio adds another layer of evidence
Hear off-screen noises and identify voices by their
gender, accent and age. Catch arguments and even verbal abuse to make sure your
kids or elderly family members are being well taken care of by anyone assisting
them.
QuickShot Cloud saves snapshots to your Dropbox
account
You can set up the security system to take still images
and save them to your personal Dropbox account in the cloud. So even if your
security system gets stolen or destroyed by any burglars, you’ll have peace of
mind knowing you can go online and access snapshots from your security
cameras.
The right security kit for your property
An 8-channel security system suits medium detached
properties for outdoor & indoor monitoring. It comes with 4 cameras and you
can add 4 more for a total of 8.
View your home on your phone
See the cameras live and play back recordings on your
smartphone or tablet, no matter where you are in the world with the HomeSafe
View app.
Instantly link your smartphone or tablet to the
NVR
Once your NVR is connected to the internet, simply
install the HomeSafe View app on your smartphone or tablet. Then scan the QR
code sticker on the NVR to instantly start viewing the cameras on your device
with Swann’s peer-to-peer SwannLink technology. See video.

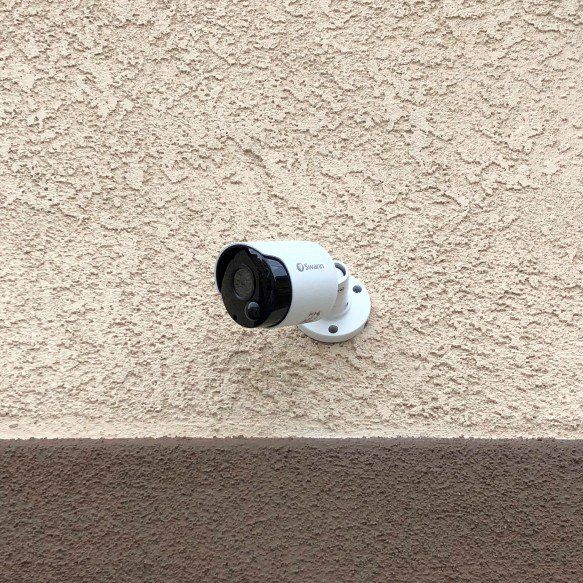

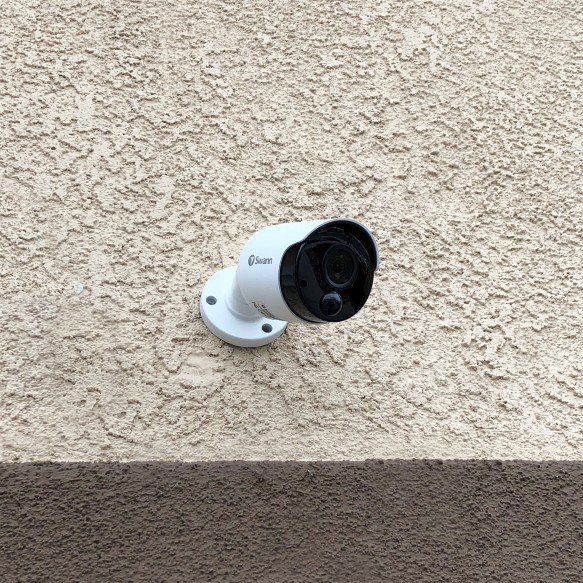

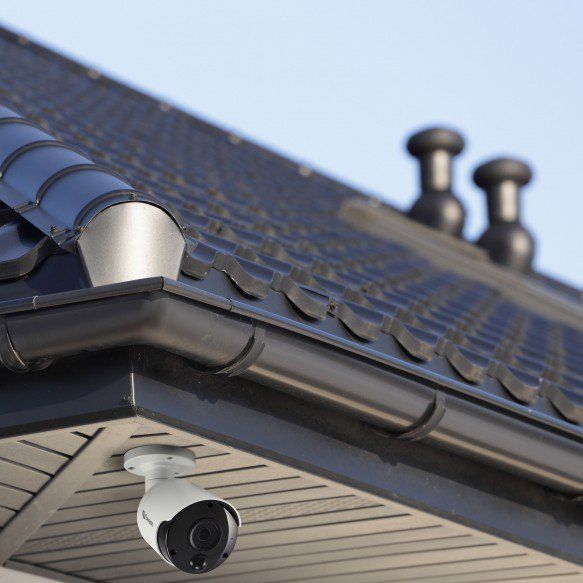

Weatherproof cameras built for any
climate
Use them as outdoor cameras or indoor cameras as they are
built tough to withstand whatever the weather throws at them: rain, snow, dust
and hot days. With IP66 weatherproof rating and cables threaded through the
stand for extra protection ensure you can rely on their performance, day in, day
out.
See everything day or night
At nightfall, the cameras automatically switch to infrared night vision and
record in black and white allowing you to see up to 130ft (40m), so that you're
sure to record anyone roaming around your property in the middle of the
night.
Easier Installation with Power over Ethernet
Installation is now easier than ever with the NVR’s Ethernet ports which
allow video, audio and power to run from the NVR to the cameras through the same
cable. Simply run the included CAT5 Ethernet cable from the camera to the NVR
and click it into place.
Massive surveillance grade hard drive
The massive 2TB HDD is designed especially for continuous surveillance
recording. Easily transfer incident video files to a USB stick or to a computer
on your network. With such massive storage, you can come back from your long
vacation and still find recordings from a while back.
Crime Prevention Smart Analytics
With advanced detection software features, you’ll get auto recording and
email alerts to act immediately.
Face detection
Set up the NVR to detect human faces at certain times of the day to trigger
recording and alerts. Ideal for restricted places where there shouldn’t be
anyone roaming around at particular times.
Line Crossing Detection
Draw a line on the image and set up the direction of the movement to be
detected, that is, A to B, B to A or both ways to trigger recording &
alerts. Detect people jumping a fence or entering a business.
Perimeter Intrusion Detection
Draw an area on the image and any movement coming into the area will trigger
recording & alerts. Use it to circle parked cars, windows and doors.
Static Object Detection
Draw an area on the image and any static object removed from the area, or
left inside the area will trigger recording & alerts. Protect valuables or
use it on your porch to detect a parcel delivered.
Person Detection
This feature distinguishes movement of person-shaped objects to activate
recording & alerts. Use it to detect anyone walking towards your property.
Crossing Counter
Draw a line on the image and any movement crossing the line will be counted
in both directions in separate counters. Useful for businesses to count
customers.
HomeSafe View App
Security in the Palm of your Hands
See live footage from your security cameras, wherever you are.
- Multi-channel viewing at the same time
- Playback stored recordings on your mobile device
- Capture video from cameras’ live view to playback later
- Capture single and multi still images to save to your device

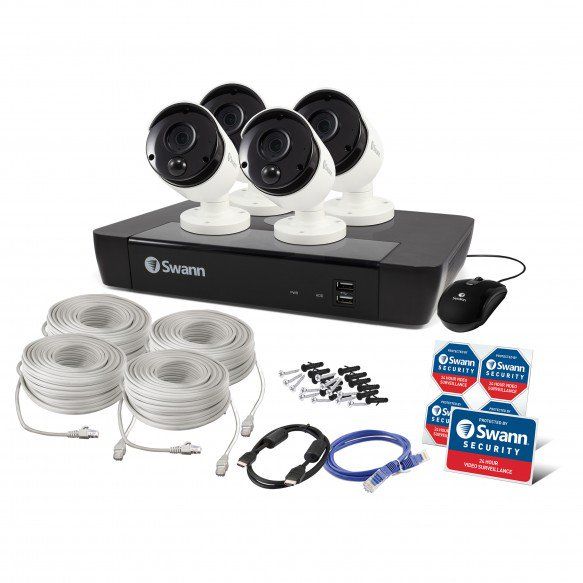

What's In the Box

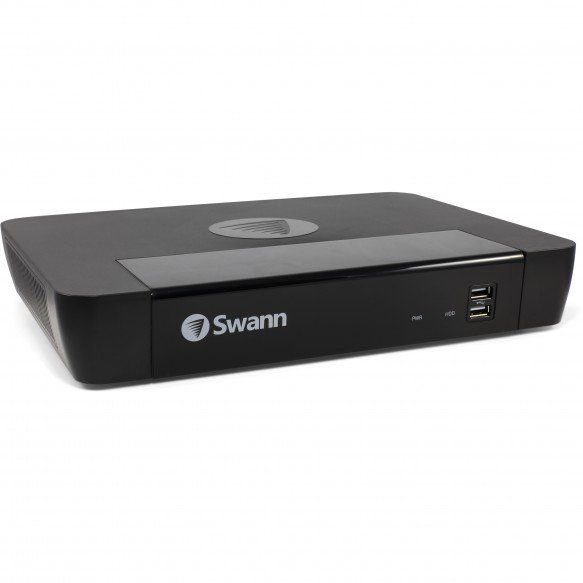

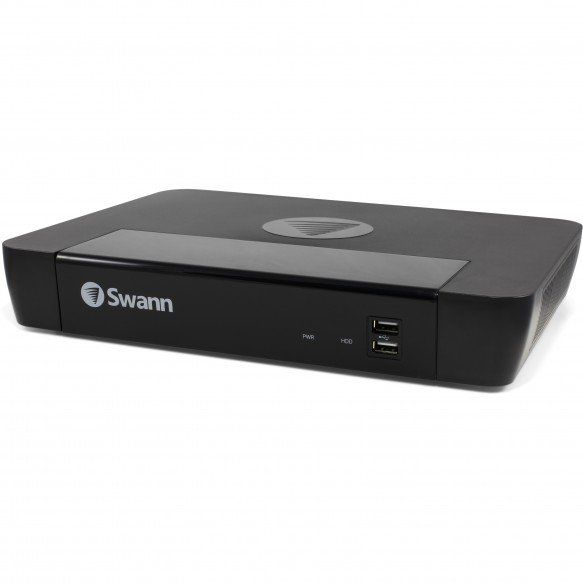

- NVR-8580 8 Channel NVR with 2TB Hard Drive
- NHD-885MSB 4K Bullet Cameras x 4
- Cat5e Ethernet Cable x 5 (60ft/18m x 4 & 3ft/1m x 1)
- HDMI Cable
- Power Adapter & Splitter
- Mouse
- Mounting Screws & Plugs
- Quick Start Guide
- Theft Deterrent Stickers
Specifications

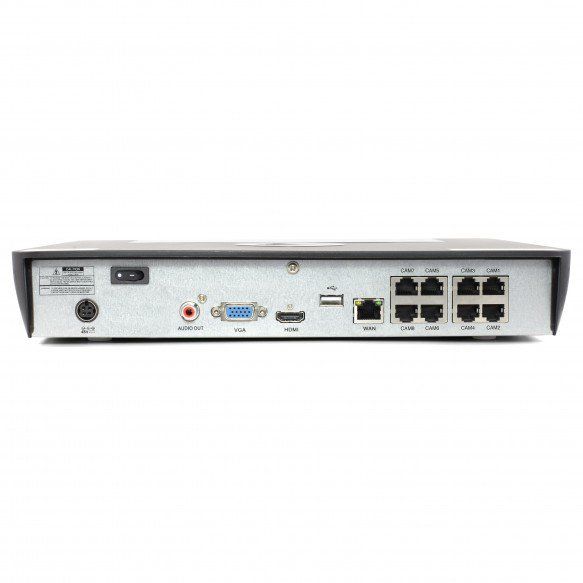

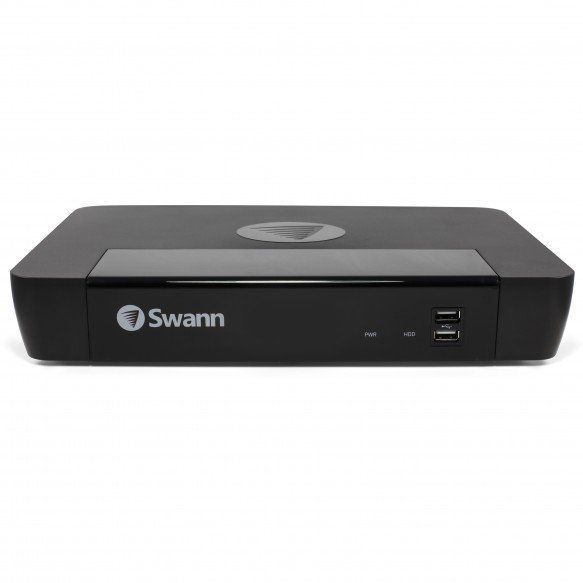

NVR-8580 Channel Network Video Recorder |
|
Video |
|
Video Input |
8 Channels |
Video Outputs |
VGA, HDMI |
Display Resolution |
Up to 4K |
|
|
Audio |
|
Audio Input |
8 x via PoE Ports |
Audio Output |
1 x RCA |
|
|
Recording |
|
Compression Format |
H.264 / H.265 |
Recording Resolution |
4K (8MP) with addition of 4K compatible cameras |
Playback Speed |
Frame Rate up to 15fps @ 4K |
|
|
Hard Drive |
|
Hard Drive Included |
2TB |
HDD Capacity |
Up to 6TB |
|
|
Connection |
|
Network Interface |
RJ45 Port x 1 |
USB Interface |
USB 2.0 x 3 |
|
|
Software |
|
Computer Operating System |
Windows, Mac OS |
Internet Viewing |
HomeSafe View |
Handheld Device Supported |
iOS, Android, 3G/4G Smartphones & Tablets |
|
|
General |
|
Dimensions |
9.25" x 12.2" x 2" |
|
235mm x 310mm x 53mm |
|
|
NHD-885MSB Camera |
|
Video |
|
Video Quality |
4K |
Viewing Angle |
93° |
|
|
Audio |
|
Microphone |
Yes |
Audio Range |
16ft |
|
5m |
|
|
Night Vision |
|
Night Vision Distance |
Up to 130ft |
|
40m |
IR Cut Filter |
Yes |
|
|
General |
|
PIR Thermal/Motion Sensor |
Yes, True Detect |
PIR Sensor Range |
Up to 32ft / 10m |
Indoor / Outdoor |
Indoor or Outdoor, IP66 rated |
Operating Temperature |
-22°F ~ 131°F |
|
-30°C ~ 55°C |
Body Construction |
Aluminum |
Dimensions – Camera |
5.94" x 2.76" x 2.76" |
|
151mm x 70mm x
70mm |
