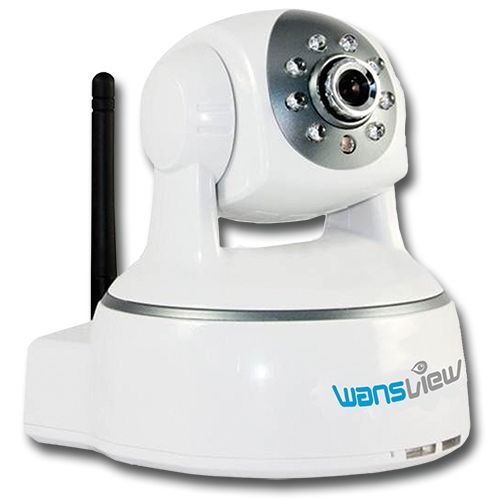

Wansview NCH-530W Wireless IP Cloud Plug and Play Tilt Infra-Red Camera

[Large image available]

Product May Vary From Image

Part No:

231612

Brand:

Wansview Web Site

Manuf No:

NCH530W

Usually Ships:

No Longer Available More info

Ship Weight:

0.5 KG Details

Product Description

WANSVIEW NCH-530W

640x480 VGA H.264 Wireless IP Cloud Plug and Play Pan Tilt IR Camera

The Wansview NCH530W has simplified the abilty to remotely monitor your home or business. With its unique CLOUD feature you can be remote viewing from anywhere on the internet in just 4 easy steps. With its easy Plug and Play Installation even the most novice network user can set up the Wansview Cloud view camera.

The Wansview Cloud View Camera is perfect for:

Home monitoring
Baby Monitoring
Pet Monitoring
Elderly Monitoring

For advanced users, there is no need for a PC Connection, Port Forwarding, Dynamic DNS Serice. Simply follow the below instructions to remote monitoring FREEDOM.

Function and Features

32-bits RISC processor and special video encoder which can be up to 3M pixels encoding performance
Support H.264 Main [email protected] compression format, bit rate is smaller, and the image is more clear.
It is more convenient for transferring through Internet and save more storage space.
VGA/QVGA/QQVGA resolution optional. User can change some specification according to their demands to satisfy
his own visual prefer.
Support 3 kinds of video stream, suitable for Local, Internet and Cross-platform view.
Built-in microphone, and also support to connect external audio capturing device (like MIC phone or sound
pick-up) to capture the audio. External speaker can play the voice sent to the live scene, to achieve two-way
intercom function. Audio support G.711 and G.726 types.
Built-in Pan/Tilt, horizontally 350, vertically 100. This equipment is smart and beautiful, very easy to install
and use in many occasions.
Support IR and color filter change automatically, no any color difference.
Built-in web server, support video view and parameter settings by browser; use one port to send all the data,
it facilitates network setting.
Support 802.11b/g /n protocol, can build up wireless monitoring.
Support mobile phone watching.
Support UPNP, port forwarding automatically on the router.
Support maxim 32G SD card for video and picture storage.
Motion detection and alarm pin can be connected to external sensors to detect environmental situation.
Alarming record can be stored by email, SD card, and FTP server. External alarm can be open when detecting
unusuality. It also sends alarm info to the alarm server.
Infrared LED for night vision covers 5m area, to realize 24 hours monitoring.
Support three level of user authority.
Support upgrading online.
Manufacture attached a label at the bottom of each IP Camera, it include Device ID, DDNS. When IP Camera
is connected to the internet, this URL can be used to visit the device.
Manufacture provides free software, support Multi-view, Long time recording, video replay etc.
Support video view by other browsers like as Firefox, safari etc.

Specifications:

Hardware performance	Product type	IP camera
Hardware performance	Operation system	Embedded operating system
Web environment	Web protocol	IP TCP UDP HTTP SMTP FTP DHCP DDNS UPNP NTP PPPOE
	LAN port	10Base-T/100Base-TX(RJ-45)
	Wifi	WIFI,802.11 b/g/n
Image performance	Resolution	VGA QVGA QQVGA
	Compression mode	H.264/JPEG,Support both the the two H.264 stream and a JPEG stream
	Max frame rate	30fps
Other parameters	Lens	4mm Black & White
	Min. illumination	0 lux
	Electronic shutter	1/50s(1/60s)-1/100,000 s
	SNR	>48db
	Safety performance	Three levels of user rights
	Install mode	Wall-mounted / ceiling-mounted
	Other performance	PC software,support for Microsoft Windows 98/2000/XP/Vista/Windows 7,And the Internet Explorer6.0 and above version or browser compatibility, Firefox, etc., provide IPCMonitor.exe client software
	Power supply	DC 5V
	Sensor	0.3 Million CMOS Sensor
	IP camera performance	Support video control, Two-way voice talkback, motion detection, external alarm(sends information to alarm the server by Email, FTP); Manufacturers provide free DDNS, and has been written into equipment; Platform level angle 350 ,100 vertical angle; 8 infrared lamps, 5 meters effectively; automatically control through the photoresistor
	Audio input	With microphone, and provide the audio input interface
	Audio output	provide the audio output interface
	Alarm in	In support of the 1 road
	Alarm out	In support of the 1 road
	Power consumption	Power<6W
Appearance parameters	Body size	102107148mm
Appearance parameters	Product weight	659g
Environment parameters	Environment temperature	-10C-50C
Environment parameters	Environment humidity	below 85% RH

Product Warranty

1 Year Return to Base
