Vivotek FD8163 Day & Night Fixed Dome Network Camera - 2 Megapixel CMOS Sensor, 1/2.7" Progressive CMOS, 30 fps @ 1920x1080, Built-In MicroSD/SDHC/SDXC Card Slot, Real-time H.264, MPEG-4, and MJPEG - White

[Large image available]

Product May Vary From Image

Part No:

221429

Brand:

Vivotek

Manuf No:

VT-FD8163

VTFD8163

Usually Ships:

No Longer Available More info

Ship Weight:

1.5 KG Details

Product Description

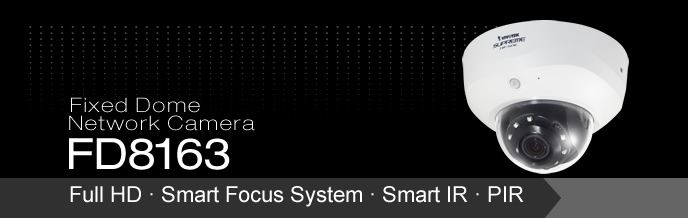

Full HD Smart Focus System Smart IR PIR Fixed Dome Network Camera FD8163

Overview

VIVOTEK FD8163 is an easy-to-use fixed dome network camera, featuring 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. As a true day/night camera, the FD8163 features a removable IR-cut filter and 15-meter smart IR illuminators, maintaining clear images 24 hours a day. It is especially suitable for monitoring wide open indoor areas such as a building lobby, train station, or applications requiring accurate identification.

For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the Smart Focus System including Easy Focus Button and Remote Focus to make installation and adjustment easier. VIVOTEK has adopted lenses with a built-in stepper motor that the installer can use to remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance. Furthermore, the unique design featuring four-step mounting also facilitates installation of the FD8163.

Together with a PIR sensor for enhanced detection, WDR enhanced, 802.3af compliant PoE, tamper detection, microSD/SDHC/SDXC card slot for on-board storage, video cropping, and e-PTZ functionality, the FD8163 is indisputably the top choice for reliable and high performance surveillance.

Features

2-Megapixel CMOS Sensor
30 fps @ 1920x1080
3 ~ 9 mm Motorized, DC-iris Lens
Removable IR-cut Filter for Day & Night Function
Built-in IR Illuminators, Effective up to 15 Meters
Built-in Smart IR to Avoid Overexposure
Built-in PIR Sensor for Human Detection
WDR Enhancement for Unparalleled Visibility in High Contrast Environments
Real-time H.264, MPEG-4, and MJPEG Compression (Triple Codec)
Smart Focus System for Remote and Easy Focus Adjustment
Built-in 802.3af Compliant PoE
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage

Specifications:

These specifications are subject to change without notice.

System Information

CPU	Multimedia SoC (System-on-Chip)
Flash	128 MB
RAM	256 MB

Camera Features

Image sensor	1/2.7" Progressive CMOS
Maximum Resolution	1920x1080
Lens Type	Vari-focal, remote focus
Focal Length	f = 3 ~ 9
Aperture	1.2 ( wide ), 2.1 ( tele )
Auto-iris	DC-iris
Field of View	38 ~ 104 (horizontal) 22 ~ 71 (vertical) 43 ~ 111 (diagonal)
Shutter Time	1/5 sec. to 1/32,000 sec.
WDR Technology	WDR Enhanced
Day & Night	Removable IR-cut filter for day & night function
Minimum Illumination	0.08 Lux @ F1.2, 50 IRE ( Color ) 0.001 Lux @ F1.2, 50 IRE ( B/W )
Pan range	360
Tilt range	180
Pan / Tilt / Zoom	ePTZ 48x digital zoom (4x on IE plug-in, 12x built-in)
IR Illuminators	Built-in IR illuminators, effective up to 15 meters IR LED*8
On-board Storage	MicroSD/SDHC/SDXC card slot

Video

Compression	H.264, MJPEG & MPEG-4
Maximum Frame Rate	H.264: 30 fps at 1920x1080 MPEG-4: 30 fps at 1920x1080 MJPEG: 30 fps at 1920x1080
Maximum Streams	4 simultaneous streams
S/N Ratio	Above 52 dB
Dynamic Range	55 dB
Video Streaming	Adjustable resolution, quality and bit rate Configurable video cropping for bandwidth saving
Image Settings	Adjustable image size, quality, and bit rate Time stamp and text caption overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance and exposure control, gain, backlight compensation, privacy masks Scheduled profile settings

Audio

Audio Capability	Audio input / Audio output (Full duplex)
Compression	GSM-AMR AAC G.711
Interface	Built-in microphone External microphone input External line output
Effective Range	5 meters

Network

Users	Live viewing for up to 10 clients
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Interface	10 Base-T / 100BaseTX Ethernet (RJ-45)
ONVIF	Supported, specification available at www.onvif.org

Intelligent Video

Video Motion Detection

Triple-window video motion detection

Alarm and Event

Alarm Triggers	Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, PIR
Alarm Events	Event notification using HTTP, SMTP, FTP, NAS server File upload via HTTP, SMTP, FTP and NAS server

General

Smart Focus System	Remote focus & easy focus
Connectors	RJ-45 for network/PoE connection Audio input/output AV output AC 24V power input DC 12V power input Digital input1 Digital output1
LED Indicator	System power and status indicator
Power input	12V DC 24V AC IEEE 802.3af PoE Class 3
Power consumption	DC 12V: 6.9 W PoE: 9.3W AC 24V: 8.5W
Dimensions	: 157 mm x 110 mm
Weight	Net: 840 g
Safety Certifications	CE C-Tick FCC (Class B) LVD VCCI
Operating Temperature	Operating Temperature: 0C ~ 50C (32F ~ 122F)
Warranty	36 Months

System Requirements

Operating System	Microsoft Windows 7/Vista/XP/2000
Browser	Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x
Other Players	VLC: 1.1.11 or above QuickTime: 7 or above

Product Warranty

3-year Manufact.
