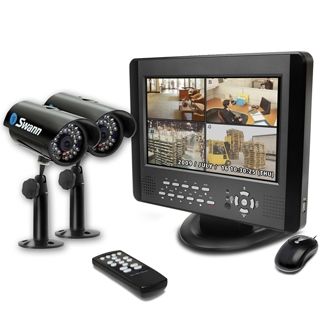

10 All-in-One DVR Security System DVR4-5000 4 Channel LCD & 2 x PNP-150 Indoor / Outdoor Cameras
4 Channel Digital Video Recorder with pre-installed 320GB HDD / MJPEG recording technology / transfer incidents to USB flash drive / Includes 2 x Indoor/Outdoor cameras with 400 TV Lines / 30ft 9m good night vision
Your business. Your home. Your family. Youd do anything in the world to protect them. With this well featured and excellent value for money video recording system, you dont have to leave their security up to chance and can rest easy knowing that you are able to keep a watchful eye over them at all times.
With this All-in-One 10" Security System, you get the best of both worldsthe convenience of a bundled system with the quality of the finest, value for money state-of-the-art security technology available today. Complete with our 4-channel LCD DVR4-5000 and 2 PNP-150 security cameras, this plug-and-play system lets your monitor, capture and record crystal-clear video footage from up to 4 cameras at once. The split screen capabilities enable you to keep a constant eye out and focus on even the finest details. With a 320GB hard drive that can capture as much as 2 months of continuous video and with space-saving motion detection, you can literally set it and forget it, without having to scroll through endless hours of empty footage. Best of all, its extremely intuitive to set up and use, making it ready to go right out of the box. Plus, you can easily backup video evidence via a USB connection to a flash drive or memory stick. The Swann All-in-One 10" LCD DVR Security System. Proof that the finest technology can only lead to one thing the finest, value for money security system on the planet.
Includes 4-Channel DVR LCD and 2 high-quality video cameras with stunning 1/3 SuperCMOS 400 TV line resolution
State-of-the-art night vision cameras can capture high-image clarity up to 30ft (9m) away
Inputs up to 4 cameras at once for a total comprehensive security solution
Split screen viewing capabilities let you keep an eye on multiple locations at once
Plug and play technology with highly-intuitive menus and simple point-and-click mouse controls
Proven MJPEG recording technology provides crystal-clear image quality
Lets you set & forget by recording continuously from all 4 cameras up to 60 days
Durable, all-weather, anti-corrosive housing helps to protect the camera from harsh weather conditions
USB connection makes it easy to back up video to a flash drive
Professional security solution for home or business at a fraction of the price with no ongoing monthly fees
+ based on the lowest recording settings
Specifications

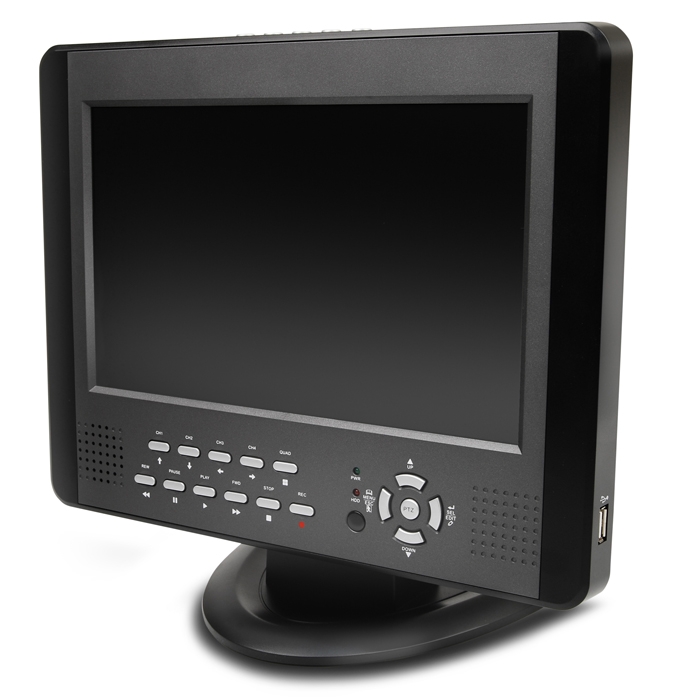

| DVR4-5000 |
|
|
Video |
|
Video Format
|
NTSC or PAL |
|
Video Inputs
|
4 Composite BNC Inputs |
|
Video Outputs
|
1 Composite BNC Output |
|
Display Resolution
|
NTSC: 704 x 480
PAL: 704 x 576 |
|
Display Frame Rate
|
NTSC: 120fps
PAL: 100fps |
|
|
Audio |
|
Audio Input
|
2 CH |
|
Audio Output
|
1 CH |
|
|
Recording |
|
Compression Format
|
MJPEG |
|
Recording Resolution
|
NTSC: 320 x 112, 640 x 224
PAL: 320 x 136, 640 x 272 |
|
Recording Frame Rate
|
NTSC: 60 fps
PAL: 50fps |
|
Recording Modes
|
Manual / Motion / Schedule / Sensor |
|
Multiplex Operation
|
Duplex |
|
HDD Interface / Memory Type
|
SATA |
|
Hard Drive Support
|
Up to 1TB |
|
|
General |
|
Operating Power
|
DC 12V |
|
Dimensions
|
11.8" x 11.4" x 2.8"
300mm x 290mm x 70mm |
|
Weight
|
5.5lbs / 2.5 kg |
|
Backup Method
|
USB to Flash Drive |
|
Mouse Support
|
Yes |
|
Remote Control
|
Yes |
|
Remote Control
Battery Type
|
2 x AAA |
|
|
Display |
|
Display Size
|
10.2" |
|
Aspect Ratio
|
4:3 or 16:9 |

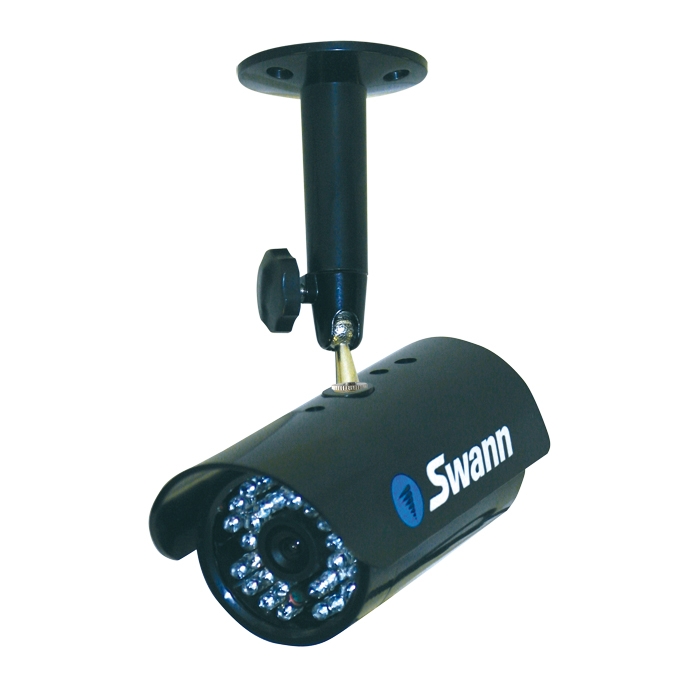

| PNP-150 |
|
|
Video
|
|
Image Sensor
|
1/3" CMOS |
|
Video Quality
|
400 TV Lines |
|
Number of Effective Pixels
|
510 x 492 (NTSC), 628 x 582 (PAL) |
|
Minimum Illumination
|
0 Lux (IR on) |
|
Day/Night Mode
|
Color during day / switches to B&W at night |
|
White Balance
|
Automatic |
|
Signal / Noise Ratio
|
> 50dB |
|
Electronic Shutter
|
1/60 - 1/15,000 NTSC
1/50 - 1/15,000 PAL |
|
Gain Control
|
Automatic
|
|
Backlight Compensation
|
Yes
|
|
Wide Dynamic Range
|
No |
|
Lens
|
6mm |
|
Viewing Angle
|
53 |
|
|
Audio
|
|
Microphone
|
No |
|
Audio Range
|
N/A |
| |
Night Vision
|
|
Night Vision Distance
|
Up to 30ft / 9m
|
|
IR Cut Filter
|
No |
|
Number of Infra-Red LEDs
|
30 |
|
Infra-Red Wavelength
|
850nm |
|
Infra-Red LED Life
|
10,000 hours |
| |
General
|
|
Indoor / Outdoor
|
Indoor / Outdoor |
|
Operating Power
|
DC 12V |
|
Operating Temperature
|
14F ~ 122F
-10C ~ 50C
|
|
Body Construction
|
ABS Plastic |
|
Dimensions - Camera & Stand
|
N/A |
|
Dimensions - Camera
|
5.5 x 2.8 x 2.8 (140mm x 70mm x 70mm) |
|
Dimensions - Stand
|
4.5 x 2.3 x 2.3(120mm x 60mm x 60mm) |
|
Weight - Camera
|
0.4lbs / 180g |
|
Weight Camera & Stand
|
0.5lbs / 235g |
|
Cable Length
|
50ft / 15m |
|

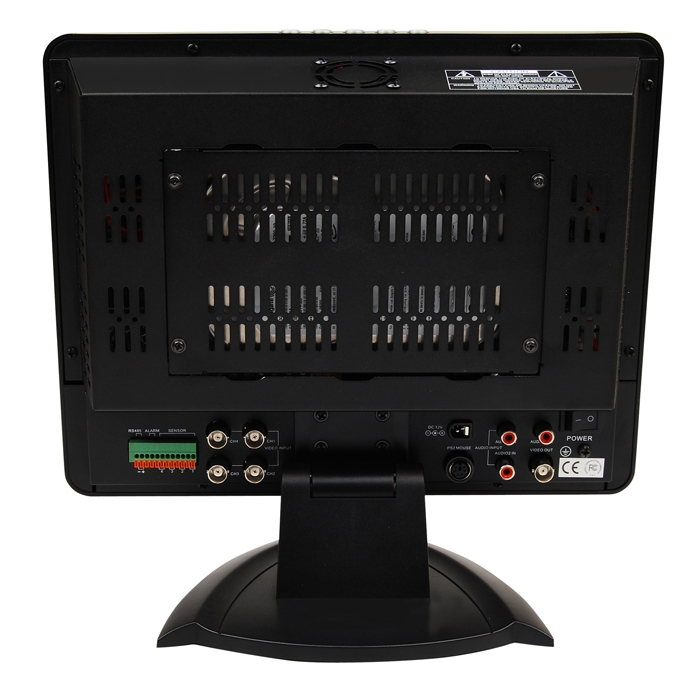

Labelled Diagram

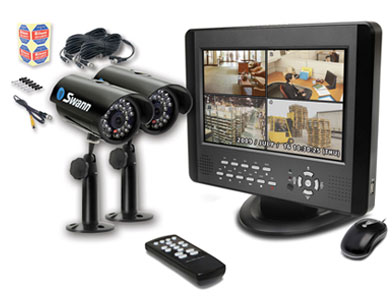

What's in the Box?
Contents- DVR4-5000
- Hard Drive 320GB (installed)
- PNP-150 Cameras x 2
- BNC Cables 50ft (15m) x 2
- RCA to BNC Adapters x 2
- BNC to RCA Cable 3ft (1m)
- Remote Control
- Mouse wired (PS/2)
- Power Adapters
- Mounting Screws & Plugs
- Operating Instructions
- Theft Deterrent Stickers x 4
