NoBrand Fuse Holder - M205, 10A, PCB Mount w. Cover

[Large image available]

Product May Vary From Image

Part No:

115614

Brand:

NoBrand

Manuf No:

S5985

Usually Ships:

No Longer Available More info

Ship Weight:

0.003 KG Details

Product Description

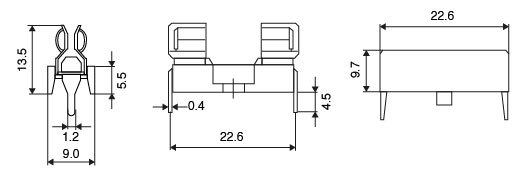

PCB mount with protective cover. 6.3 amps at 250V AC. 1.2mm PC pins at 23mm between centres

Features

Use UL Approved Materials
Low Cost
Low Contact Resistance
Flame Retardant

Specifications:

Insertion &Extraction Force: 1Kg.Min.
Dielectric Strength For 60 Sec: AC2000V Min.
Suitable Rated Current: 6.3A @ 250V
Insulation Resistance At 500VDC: 100M Min
Temperature Rise: 60C Max.
Voltage Drop: 15mV Max.

Product Warranty

1 Year Return to Base
