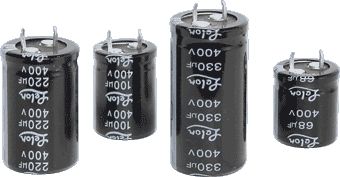

NoBrand Electrolytic Capacitors - 400V, 100uF, 30mm, PCB Mount, Snap In Terminals

[Large image available]

Product May Vary From Image

Part No:

114481

Brand:

NoBrand

Manuf No:

R5368

Usually Ships:

No Longer Available More info

Ship Weight:

0.019 KG Details

Product Description

These capacitors are a “snap-in” PCB mount type. The 400V DC type electrolytics are used primarily in power supply designs.

Specifications

Tolerance: ±20%
Pitch: 10.0mm
Diameter: 22.0mm
Height: 30.0mm
Voltage: 400V DC
Ripple Current: 710mA
Temperature Range: -40°C to +85°C

*Please Note: All quantities are supplied loose.

Product Warranty

1 Year Return to Base
