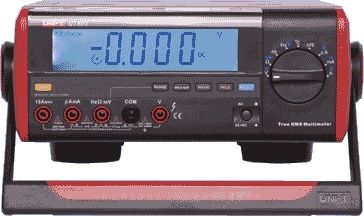

NoBrand True RMS Benchtop Multimeter

For serious service departments and circuit development a dedicated benchtop precision digital multimeter is invaluable. The Q 1520 is a professional instrument with a large, easy to read 5999 count backlit LCD display. Includes USB & RS- 232 interfaces and software for interface to a PC. Has a host of features including frequency counter, data hold, min/max display and capacitance
measurement. Operates from 240V mains power or internal batteries (not included). Supplied with test leads, temperature probe adaptor, USB and RS-232 leads, which all store neatly in the top of the unit. The case features a built-in stand/handle for ease of transport when you need to go mobile.

Features:

• True RMS mode • 5999 count LCD • RS-232 and USB interface to PC • Windows software supplied • Large back lit display • Battery or mains power • MAX/MIN display modes • Transistor tester • Frequency counter to 50MHz • Capacitance measurement • Temperature mode (°C/°F) • Continuity and diode test • Sleep mode • Fused 10A input • Data hold and run mode • Low battery indicator • Overload protection • USB & RS-232 cables included

Specifications:

DC voltage: 600mV, 6V, 60V, 600V, 1000V AC voltage: 600mV, 6V, 60V, 600V, 1000V DC current: 600µA, 6mA, 60mA, 600mA, 10A AC current: 600µA, 6mA, 60mA, 600mA, 10A Resistance: 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ Frequency: 10Hz to 50MHz Capacitance: 6nF, 60nF, 600nF, 6µF, 60µF, 600µF, 6mF Continuity: Audible tester Diode test: Included Temperature: -40°C - ˜1000°C (-40°F - ˜1832°F) Protection: 500mA fuse on mA, 10A fuse on 10A Dimensions: ≈ 240W x 310D x 105H

1 Year Return to Base
