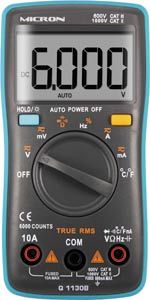

True RMS Autoranging DMM
Autoranging multimeters are great if you don't have a free hand to change ranges on your DMM.
With this model, the user has the option of operating the meter in the autoranging mode, or can manually select the appropriate range.
This quality mini auto ranging meter represents fantastic value for money and is great for mobile technicians, installers or enthusiasts.
It features excellent performance and a wide range of functions at an affordable price.
Supplied with test leads, rubber holster, temperature probe and built-in bench stand.
Features:
|
Manual override of auto ranging
Data hold function
Backlit display
Auto power off
Low battery indicator
AC Volts < 200V - 600V
DC Volts < 200mV - 600V
AC/DC Amps < 200µA - 10A
Resistance < 20ohm - 2Mohm
Temperature measurement
Continuity &iode tester
Rubber holster
Battery included
|
Voltage DC: 600mV, 6V, 60V, 600V, 1000V (±0.5%+3d)
Voltage AC: 600mV, 6V, 60V, 600V, 700V (±1.0%+10d)Current DC: 600µA, 6mA, 60mA, 600mA, 10A (±1.5%+3d)Current AC: 600µA, 6mA, 60mA, 600mA, 10A (±1.5%+3d)Capacitance: 10nF, 100nF, 1µF, 10µF, 100µF, 1000µF, 10000µF (±5%+5d)Ohms: 600O, 6kO, 60kO, 600kO, 6MO, 60MO (±0.5%+2d)Continuity: 40O threshold, audible toneDiode test: Test current 5mA maxDuty cycle: 1-99% @ 250V RMS max (±0.8%+2d)Frequency: 99Hz - 9.99MHz (±0.08%+2d)Temperature: -20°C to 1000°C (±1%+3d)Display: 3.75 digit, 6000 count, backlitProtection: 200mA M205 fused on all inputs, except 10A rangeDimensions: ˜ 69W x 31D x 138H mm|
|
|
