Ezviz DP1 Sensor
Details
See Who's There On Your Phone and a Smart Color
Touch-Screen

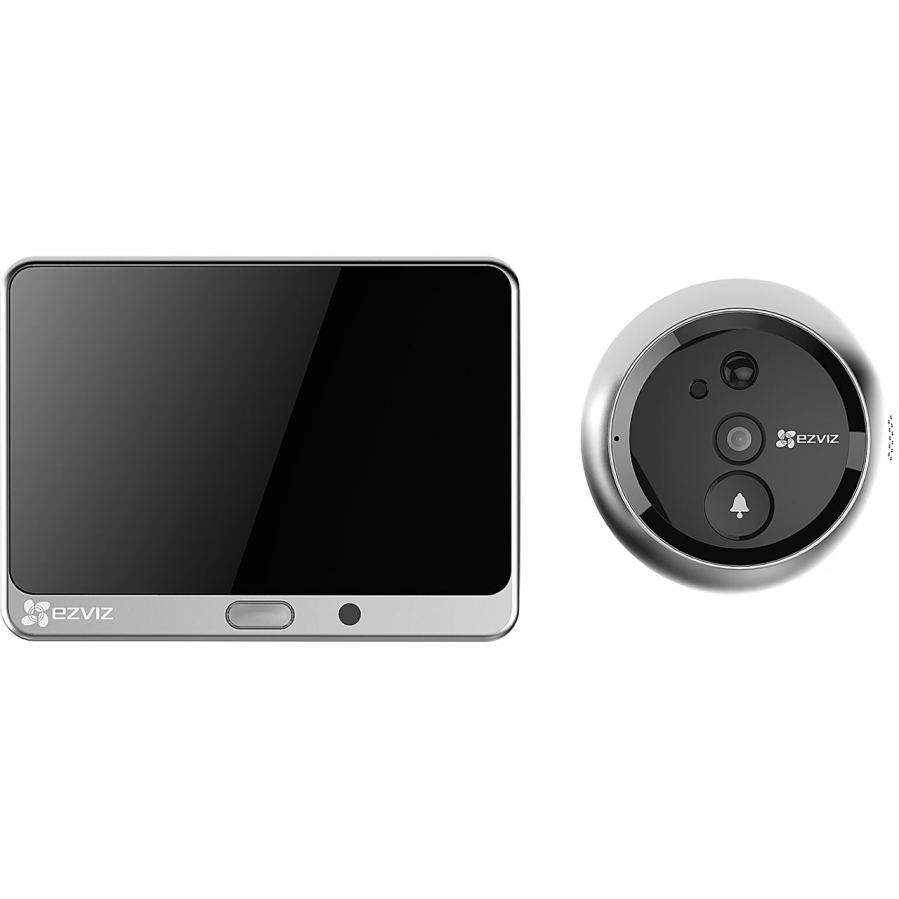

Turn a Standard Peephole into a Smart Video
Viewer
DPI is a smart, wire-free door viewer with motion detection, enabling you to
see and speak to the person at your door. With its HD video and crystal two-way
intercom, you will never miss a visitor.
- PIR Motion Detection
- HD High Definition Video
- View Anywhere
- Two-Way Talk
- High-Endurance Zinc Alloy Body
- 4.3 Color Touch Screen
- 4600mAh Rechargeable lithium Battery
- Built-in Chimes
- Night Vision(Up to 3 meters)
- 2.4 GHz Wi-Fi
Intuitive and Smart Touch-Screen
The DP1 replacesyour traditional peephole with a smart doorviewer.It comes
with a4.3color touch-screen placed on interior side of thedoor.
When a visitor presses the bell, the color touch screenwill automatically
turnon. Asyou walk upto your front door,you see who is on the other side for
touchless convenience.
Instant Alert for 24/7 Protection
Featuring smart motion detection, the DP1 captures images and sends real-time
alerts to you when a visitor is at the door.
Video in Real-Time
Featuring with built-in chimes, the DP1 alerts you and provides real-time
video of your visitors via indoor screen and your smartphones as
well.
HD Video with Wide-Angle View
With its HD 720p commercial-grade wide-angle lens, the DPI gives you a wider
view outside the door.
Crystal Clear Night Vision
Up to 3 meters of night vision, the DP1 delivers crystal and clear images
even at night. Switches between day and night modes automatically.
High Quality, Durable Body
Its strong and durable Zinc Alloy construction means the DP1 can withstand
vandalism and prevent unwanted removal.
Long Battery Life
Equipped with a built-in 4600mAh rechargeable lithium battery, the DP1
delivers long battery life with minimal power consumption
Specifications
|
Model
Parameters |
|
Model |
CS-DP1-A0-4A1WPFBSR |
|
System |
|
Processor |
High-Performance
Embedded SOC Processor |
|
Operation
System |
Embedded
RTOS |
|
Installation |
|
Supportive Hole
Diameter |
16.5-50
mm |
|
Supportive Door
Thickness |
35-110
mm |
|
Camera |
|
Sensor |
1/3" Progressive Scan
CMOS |
|
Lens |
[email protected], 124
(horizontal), 70 (vertical) |
|
Day/Night
Switch |
ICR infrared
filter |
|
IR
Distance |
3
meters/10ft |
|
Resolution |
720p |
|
PIR
Sensor |
|
Angle |
100 |
|
Distance |
2.43meters/
8ft |
|
Sensitivity |
Adjustable |
|
Screen |
|
Size |
4.3" |
|
Touch |
Capacitive |
|
Interface/Button |
|
Storage |
MicroSD Card (Max.
128G) |
|
Audio
Input |
Built-in high sensitive
microphone |
|
Audio
Output |
Built-in high power
speaker |
|
Button |
Doorbell button, power
button, screen wake-up button |
|
Network
Function |
|
Smart
Alert |
PIR motion
detection |
|
Video
Intercom |
Support |
|
Protocol |
EZVIZ proprietary
protocol |
|
General
Function |
encryption |
|
Wi-Fi |
|
Standard |
IEEE802.11b, 802.11g,
802.11n |
|
Frequency
Range |
2.4 GHz ~ 2.4835
GHz |
|
Channel
Bandwidth |
20MHz |
|
Security |
64/128-bit WEP,
WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
|
Speed |
11b: 11Mbps,11g
:54Mbps,11n :150Mbps |
|
Minimum Network
Requirement |
2Mbps |
|
General |
|
Power
Supply |
DC5V10% |
|
Power
Consumption |
Max.
2.25W |
|
Product
Dimensions |
Panel + Base: 115.5mm x
85.5mm x 24.5mm Camera: 71mm x 71mm x 48.3mm |
|
Packaging
Dimensions |
177mm x 119 mm x
95.5mm |
|
Weight
(g) |
372g |
|
Operating
Conditions |
-10C ~ 45C, Humidity
95% or less (no condensation) |
