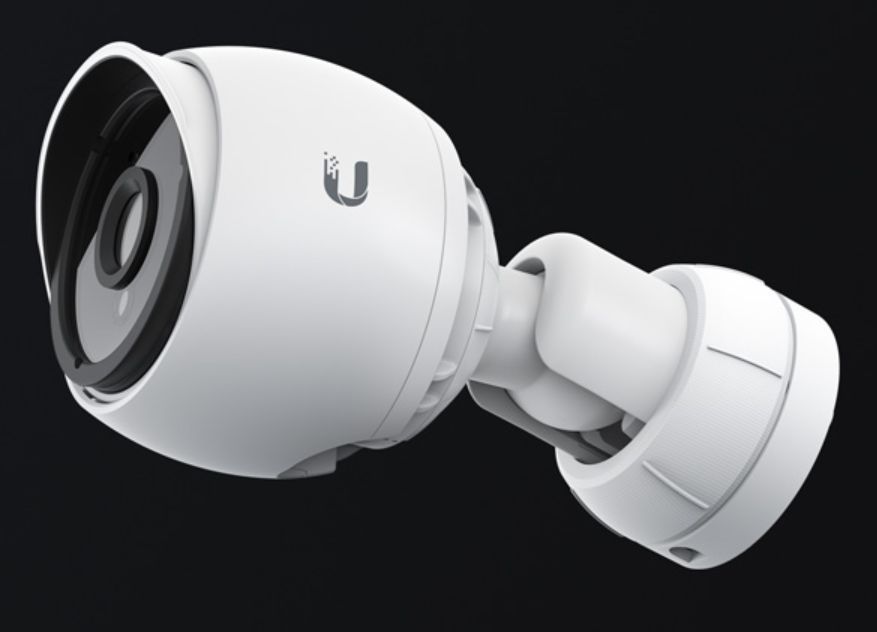

Ubiquiti UVC-G3-BULLET Video Camera
Overview
The UniFiVideo
Camera G3 represents the next generation of the UniFi Video surveillance
management system. It records 1080p HD video, day or night, indoors or
outdoors.
Powerful Software Management
Use the UniFi Video mobile app for easy camera management and live streaming
from an iOS or Android-based smartphone or tablet.
The UniFi Video mobile app is now available in the App Store for iOS and
Google Play Store for Android.
HD Image Quality
Featuring an EFL 3.6 mm f/1.8 lens for superior vision, the UniFi Video
Camera G3 provides 1080p HD resolution at 30 FPS.
Unlimited Free Use + No Third-Party Server Streaming + Remote
Accessibility Anywhere
Hybrid Cloud Technology combines the best of local and cloud management:
secure, local storage and convenient remote access with streaming privacy no
licensing or maintenance fees.
Versatile Mounting Options
The UniFi Video Camera offers aiming flexibility and can be mounted quickly
on a wall, ceiling, or pole.
Infrared Range Extender
The optional IR Range Extender accessory, model UVC-G3-LED, significantly
extends the night vision range to up to 25 m (82 ft).
Specifications
|
Dimensions |
75 x 140 mm
(
2.95
x 5.51") |
|
Weight |
300 g (10.58
oz) |
|
Enclosure |
Injection-Molded
Polycarbonate and Die-Cast Aluminum |
|
Networking
Interface |
(1) 10/100 Ethernet
Port |
|
Sensor |
1/3" 4-Megapixel HDR
Sensor |
|
Lens |
EFL 3.6 mm,
f/1.8 |
|
Night
Mode |
IR LEDs with Mechanical
IR Cut Filter |
|
Microphone |
Yes |
|
Button |
Factory Reset
Button |
|
Power
Method |
802.3af PoE or 24V
Passive PoE |
|
Power
Supply |
802.3af PoE
Switch |
|
Maximum Power
Consumption Standalone
With Optional IR Extender |
4W
9W |
|
Mounting |
Wall/Ceiling/Pole |
|
Operating
Temperature |
-20 to 50 C (-4 to 122
F) |
|
Operating
Humidity |
20 - 90%
Noncondensing |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Video |
|
Video
Compression |
H.264 |
|
Resolution |
1080p Full HD
(1920x1080) |
|
Maximum Frame
Rate |
30
FPS |
|
Settings |
Brightness, Contrast,
Sharpness, Saturation, Noise Reduction, 50/60 Hz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
General |
|
Viewing Angle
Before
Lens Correction After Lens Correction |
85 (H), 44.8 (V), 98.1
(D)
72 (H), 42.9 (V), 80.4 (D) |
|
Supported UniFi Video
Version |
UniFi Video 3.8 (or
Newer) |
|
UniFi Video System
Requirements |
64-bit Microsoft
Windows 10/8/7, Ubuntu 14.04 or 16.04, or Debian 7.0 System with an Intel
or Compatible 1.86 GHz (or Above) Processor and a Minimum of 4 GB
RAM |
