Overview

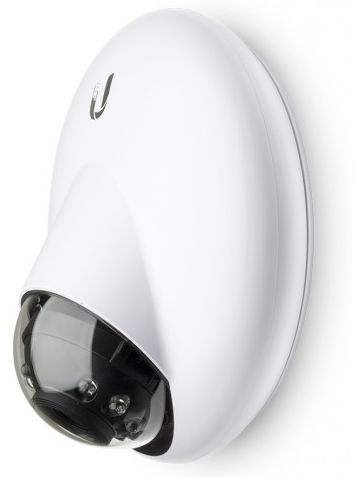

Wide-Angle 1080p Dome IP Camera with Infrared
The UniFi® Video Camera G3 Dome represents the next generation of the UniFi
Video surveillance management system. It records 1080p HD video, day or night,
indoors or outdoors under an overhang.
Models: UVC-G3-DOME
Powerful Software Management
Use the UniFi Video mobile app for easy camera management and live streaming
from an iOS or Android-based smartphone or tablet.
The UniFi Video mobile app is now available in the App Store for iOS and
Google Play Store for Android.
Sleek, Integrated Design
The versatile UniFi Video Camera Dome integrates into any ceiling or wall
surface. It is designed for use indoors or outdoors under an overhang.
HD Image Quality
Featuring a wide-angle lens for a superior field of view, the UniFi Video
Camera G3 Dome provides 1080p HD resolution at 30 FPS.
Unlimited Free Use + No Third-Party Server Streaming + Remote
Accessibility Anywhere
Hybrid Cloud Technology combines the best of local and cloud management:
secure, local storage and convenient remote access with streaming privacy – no
licensing or maintenance fees.
Specifications
Dimensions |
132 x 60 mm ( 5.20 x 2.36") |
Weight |
260 g (9.17 oz) |
Networking Interface |
(1) 10/100 Ethernet Port |
Sensor |
1/3" 4-Megapixel HDR Sensor |
Lens |
EFL 2.8 mm, F2.0 |
Night Mode |
IR LEDs with Mechanical IR Cut Filter |
Microphone |
Yes |
Button |
Factory Reset Button |
Power Method |
802.3af PoE or 24V Passive PoE |
Power Supply |
802.3af PoE Switch or 24V, 0.5A PoE Adapter (Included with
Single-Pack) |
Maximum Power Consumption |
4W |
Mounting |
Wall/Ceiling |
Operating Temperature |
-30 to 70 C (-22 to 158 F) |
Operating Humidity |
20 - 90% Noncondensing |
|
|
Video |
|
Video Compression |
H.264 |
Resolution |
1080p Full HD (1920x1080) |
Maximum Frame Rate |
30 FPS |
Image Settings |
Brightness, Contrast, Sharpness, Saturation, Noise Reduction, 50/60
Hz |
|
|
General |
|
Processor |
Ambarella S2L |
Memory |
512 MB DDR3L |
Viewing Angle Before Lens Correction After Lens
Correction |
100.4 (H), 59.1 (V), 117.3 (D) 87.8 (H), 55.4 (V), 96.4
(D) |
Supported UniFi Video Version |
UniFi Video 3.2 (or Newer) |
UniFi Video System Requirements |
64-bit Microsoft Windows 10/8/7, Ubuntu 12.04 or 14.04, or Debian 7.0
System with an Intel or Compatible 1.86 GHz (or Above) Processor and a
Minimum of 2 GB RAM. |
