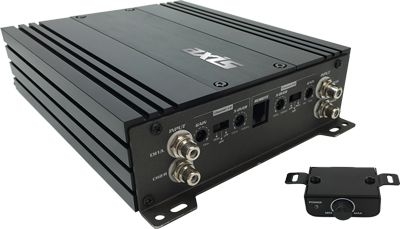

AXIS 4 Channel Class D Amplifier - 800W
4 x 75W RMS @4 Ohms, 4 x 115W RMS @2 Ohms, 2 x 240W RMS Bridged @4 Ohms, 90dB SNR, Include Remote Rear Volume Control

Overview

The XT4D is a powerful, 4 Channel Class D Digital Amplifier. Engineered with a compact & robust aluminium chassis and packing a huge 800 Watt Max Power, enjoy loud & crystal clear sound reproduction in a range of modes: Single, 2 CH Bridged, Tri-Mode or Monoblock.

Features

• Compact Chassis
• Robust Aluminium Construction
• 4 x 75W RMS Power

Specifications

• Max Power: 800W (28.4V) (1 channel mode)
• Output Power @ 14.4V 4Ohm, 1% THD: 4 x 75W RMS@ 14.4V 2Ohm, 1% THD: 4 x 115W RMS@ 14.4V 4Ohm, 1% THD: 2 x 240W RMS
• THD Continuous @ 4Ohm/1KHz: 0.2%
• Efficiency @ 4Ohm/1000Hz: 85%
• S/N Ratio @ 4Ohm/1KHz: 90dB
• High/Low Level Input Conversion
• Input Sensitivity: 0.2 - 8V
• Dampening Factor @4Ohm: 105
• Low Pass Crossover: 50 - 500Hz
• Hi Pass Crossover: 50 - 500Hz
• Bass Boost Gain: 0 - 12dB @ 45Hz
• 2 Ohm Stable
• Power Supply: 8 - 16V DC
• Fuse Rating: 1 x 30A
• Dimensions: 170 x 204 x 51mm (Chassis) 170 x 244 x 51mm (Including Terminals)
• Weight: 2.21 kg

Included

• Rear Channel Remote Volume Controller
• RCA Fly Leads for High Level Input
• Installation Accessories

12 Month Return To Base
