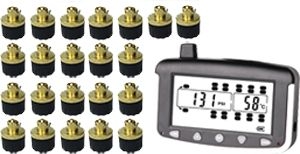

Overview
Enjoy peace of mind on the road. Save time & money by prolonging tyre
lifespan, improving fuel efficiency and protecting passengers. Designed for ease
of use, this 12-24V tyre pressure monitor system is ideal for heavy vehicles
such as trucks, caravans & RVs
Features
- For Heavy Duty Vehicles
- Water Resistant Cap Type Sensors
- Easy Installation
Specifications
Monitor
- Reliable & easy to install
- Large LCD screen
- Can detect up to 22 Sensors
- 8~30V DC Power
- Built in rechargable lithium battery
- Auto backlight
- Configurable high/low pressure warnings
- Configurable high temperature warnings
- Visible and audible alerts
- Selectable pressure units
- Long range between sensors and monitor
- Per axle measurements can be configured on tractor
- On-glass holder
- Operating Temperature: -20C - 80C
- Charger Input Voltage: DC 8 - 30V
- Transmission Frequency: 433.92MHz
- Size: 116(L) x 68(W) x 25(H)mm
- Weight: 138g
Sensors
- Reliable cap type
- Easy to install
- Water resistant
- Replaceable sensor batteries (approx 2 year battery life)
- Fast leakage alert
- Individually coded sensors
- Anti-theft design
- Pressure range: 0 to 188 PSI
- Operating Temperature: -40C - 80C
- Pressure Accuracy: 1.5 psi
- Temperature Accuracy: 3C
- Transmission Power < 10dBm
- Transmission Frequency: 433.92MHz
- Size: 24mm (diameter), 19.5mm (height)
- Weight: 30g
Optional
Repeater (RP02) |
- Operating Temperature: -20C - 80C
- Working Voltage: 12-24V
- Transmission Power < 18dBm
- Transmission Frequency: 433.92MHz
- Size: 91(L) x 38(W) x 15(H)mm
- Weight: 42g
For trailer-exchange application
- Maintains signal stability
- Records sensor ID, trailer ID and
- tyre pressure & temperature limits
- Supports truck & trailer exchange
- Transferable trailer sensor data between monitor
- Visible and audible alerts
- Fixed alerts for high temp (90)
For signal booster application
- Enhance the signal from sensors and ensure that the stablility of
receiving signal from sensors
Included
- 12/24V Cig Power Lead
- On-Glass Monitor Holder
- Installation Accessories
Optional
- Transceiver for Trailer (RP02)
