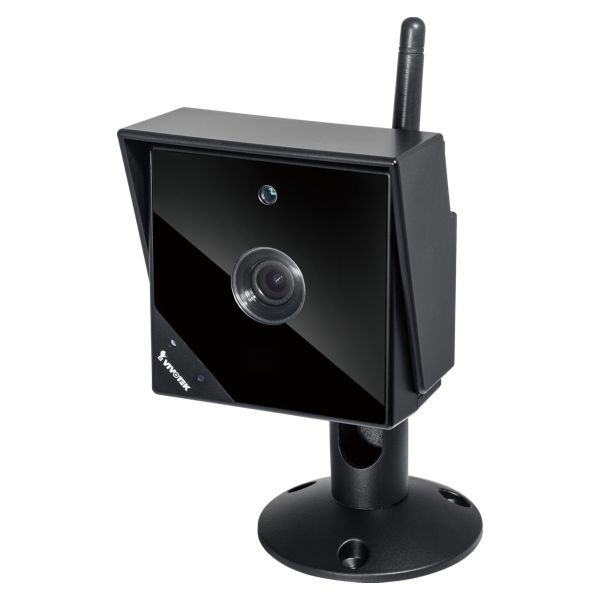

Vivotek IP8336W Fixed Network Camera - 1 MP CMOS Sensor, Removable IR-Cut Filter For Day And Night Function, Weather-Proof IP66-Rated Housing, Real-time H.264, MPEG-4, MJPEG Compression (Triple Code) - Black

[Large image available]

Product May Vary From Image

Part No:

227071

Brand:

Vivotek

Manuf No:

IP8336W

Usually Ships:

No Longer Available More info

Ship Weight:

1.2 KG Details

Product Description

1MP Day & Night IP66 WPS Fixed Network Camera IP8336W

Overview

VIVOTEK IP8336W is a compact cube camera designed for indoor/outdoor surveillance. The stylish design makes it the best choice for settings such as boutique stores, department stores, or museums. Equipped with a 1-megapixel sensor enabling viewing resolution of 1280x800 at a smooth 30 fps, the IP8336W is an all-in-one outdoor camera capable of capturing high quality, high resolution video.

Incorporating an IR-cut filter that can be removed automatically at night and built-in IR illuminators with coverage of up to 5 meters, the IP8336W is an outstanding 24-hour surveillance solution. The IP66-rated housing of the IP8336W enables users to easily build a cost-effective IP-based system without additional accessories.

The IP8336W supports the industry-standard H.264 compression technology along with MPEG-4 and MJPEG options, allowing the user to drastically reduce file sizes and conserve valuable network bandwidth. In addition, IP8336W is integrated with 802.11b/g/n wireless, making installation easier and video streaming faster than ever before. The WPS function also makes wireless configuration easy and straightforward. Together with the free multi-lingual 32-channel recording software ST7501, users can set up an easy-to-use IP surveillance system with ease.

Features

1-megapixel CMOS Sensor
compact, Elegant Design
Removable IR-cut Filter for Day and Night Function
Built-in IR Illuminators, Effective up to 5 Meters
Real-time H.264, MPEG-4 and MJPEG compression (Triple Codec)
Weather-proof IP66-rated Housing
Built-in IEEE 802.11b/g/n WLAN
Wi-Fi Protected Setup (WPS) for Easy and Secure Wireless Network Connection
Built-in MicroSD/SDHC Card Slot for On-board Storage

Specifications:

System Information

CPU	Multimedia SoC (System-on-Chip)
Flash	16 MB
RAM	128 MB

Camera Features

Image sensor	1/4" Progressive CMOS
Maximum Resolution	1280x800
Lens Type	Fixed-focal
Focal Length	f = 3.6 mm
Aperture	F1.8
Field of View	56 (horizontal) 41 (vertical) 71 (diagonal)
Shutter Time	1/5 sec. to 1/32,000 sec.
Day & Night	Removable IR-cut filter for day & night function
Minimum Illumination	0.47 Lux, 50 IRE ( Color ) 0.001 Lux, 50 IRE ( B/W )
Pan / Tilt / Zoom	ePTZ: 16x digital zoom (4x on IE plug-in, 4x built-in)
IR Illuminators	Built-in IR illuminators, effective up to 5 meters IR LED*6
On-board Storage	MicroSD/SDHC card slot

Video

Compression	H.264, MJPEG & MPEG-4
Maximum Frame Rate	H.264: 30 fps at 1280x800 MPEG-4: 30 fps at 1280x800 MPEG-4: 30 fps at 1280x800
Maximum Streams	2 simultaneous streams
S/N Ratio	Above 38 dB
Video Streaming	Adjustable resolution, quality and bit rate Configurable video cropping for bandwidth saving
Image Settings	Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings

Audio

Audio Capability	Audio input
Compression	G.711
Interface	Built-in microphone
Effective Range	5 meters

Network

Users	Live viewing for up to 10 clients
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, SNMP
ONVIF	Supported, specification available at www.onvif.org
Interface	802.11b/g/n WLAN

Intelligent Video

Video Motion Detection

Triple-window video motion detection

Alarm and Event

Alarm Triggers	Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events	Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server

General

Connectors	DC 12V power input Digital input*1
LED Indicator	System power and status indicator
Power input	12V DC
Power consumption	Max. 3.4 W
Dimensions	62 mm (D) x 85 mm (W) x 88 mm (H)
Weight	Net: 505 g
Casing	Weather-proof IP66-rated housing
Safety Certifications	CE, LVD, FCC Class B, VCCI, C-Tick
Operating Temperature	-20C ~ 45C (-4F ~ 113F)
Warranty	24 months

System Requirements

Operating System	Microsoft Windows 7/Vista/XP/2000
Browser	Mozilla Firefox 7~10 (streaming only) Internet Explorer 7.x or 8.x
Other Players	VLC: 1.1.11 or above QuickTime: 7 or above

Product Warranty

2-year Manufact.
