~~Vivotek FD8131V Fixed Dome Network Camera - 1 Megapixel CMOS Sensor, 3.0~12mm Vari-Focal Lens, Real-Time H.264, MPEG-4 & MJPEG Compression (Triple Codec), Weather-Proof IP66-Rated Housing - White~~

[Large image available]

Product May Vary From Image

Part No:

208233

Brand:

Vivotek

Manuf No:

FD8131V

Usually Ships:

No Longer Available More info

Ship Weight:

1 KG Details

Product Description

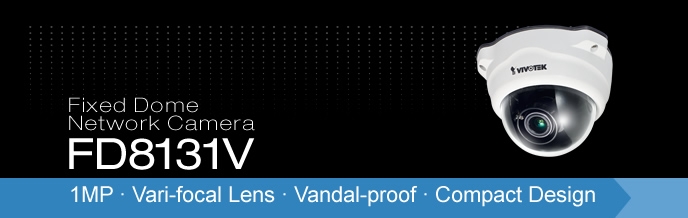

1MP Vari-focal Lens Vandal-proof Compact Design Fixed Dome Network Camera FD8131V

Overview

VIVOTEK FD8131V are easy-to-use fixed dome network cameras specifically designed for indoor security applications. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps, users need to look no further for an all-in-one camera capable of capturing high quality HD video.

With the vari-focal lens, the FD8131V provide users the freedom to adjust the field of view in accordance with their applications. The IP66-rated housing of FD8131V protects the camera body against rain and dust and ensures operation under poor weather conditions. Furthermore, the metal vandal-proof housing effectively provides robust protection of FD8131V from vandalism.

Also included are a number of advanced features standard on VIVOTEK cameras, including tamper detection, MicroSD/SDHC card slot, 802.3af compliant PoE, and VIVOTEK's 32-channel recording software. With all of these capabilities, the FD8131V present the best value in IP surveillance for indoor applications.

Features

1-megapixel CMOS Sensor
3.0 ~ 12 mm Vari-focal Lens
Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
Built-in 802.3af Compliant PoE
Built-in MicroSD/SDHC Card Slot for On-board Storage
3-axis Mechanical Design for Ceiling/Wall Mount Installation
Easy and Flexible Installation
Compact, Elegant Design
Vandal-proof IK10-rated and Weather-proof IP66-rated Housing

Specifications:

System Information

CPU	Multimedia SoC (System-on-Chip)
Flash	128 MB
RAM	256 MB

Camera Features

Image sensor	1/4" Progressive CMOS
Maximum Resolution	1280x800
Lens Type	Vari-focal
Focal Length	f=3~12mm
Aperture	F1.4 (wide), F3.2 (tele)
Shutter Time	1/5 sec. to 1/32,000 sec.
Minimum Illumination	0.5 Lux @ F1.4, 50 IRE
Pan / Tilt / Zoom	ePTZ: 16x digital zoom (4x on IE plug-in, 4x built-in)
On-board Storage	MicroSD/SDHC card slot

Video

	H.264, MJPEG & MPEG-4
Maximum Frame Rate	H.264: 30 fps at 1280x800 MPEG-4: 30 fps at 1280x800 MPEG-4: 30 fps at 1280x800
Maximum Streams	4 simultaneous streams
S/N Ratio	Above 53 dB
Dynamic Range	47 dB
Video Streaming	Adjustable resolution, quality and bitrate/li> Configurable video cropping for bandwidth saving
Image Settings	Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings

Audio

10Base-T/100 BaseTX Ethernet (RJ-45)

Network

Users	Live viewing for up to 10 clients
	LPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
ONVIF	Ver. 1.02

Intelligent Video

Video Motion Detection

Triple-window video motion detection

Alarm and Event

Alarm Triggers	Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events	Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server

General

Connectors	RJ-45 cable connector for Network/PoE connection Digital input*1 DC 12V power input
LED Indicator	System power and status indicator
Power input	DC 12V IEEE 802.3af PoE Class 1
Power consumption	Max. 3.84 W
	: 133 mm x 94 mm
Weight	Net: 589 g
Safety Certifications	CE, LVD, FCC Class B, VCCI, C-Tick
Operating Temperature	Start Temperature: -10C ~ 50C (14F ~ 122F) Working Temperature: -20C ~ 50C (-4F ~ 122F)
Warranty	24 months

System Requirements

Operating System	Microsoft Windows 7/Vista/XP/2000
Browser	Mozilla Firefox 7~10 (streaming only) Internet Explorer 7.x or 8.x
Other Players	VLC: 1.1.11 or above Quicktime: 7 or above

Product Warranty

2-year Manufact.
