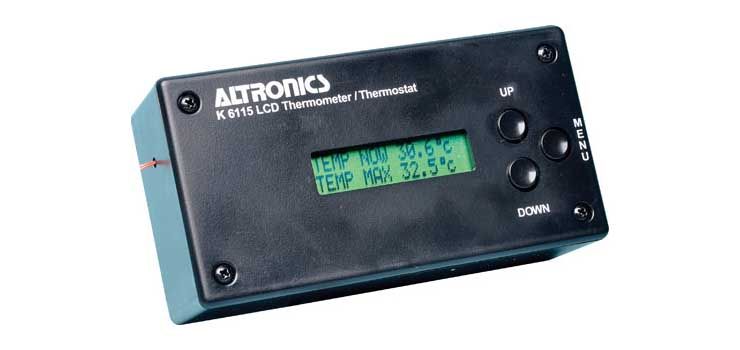

NoBrand LCD Thermometer/Thermostat Kit - Requires 12V DC Power Supply

[Large image available]

Product May Vary From Image

Part No:

108934

Brand:

NoBrand

Manuf No:

K6115

Usually Ships:

No Longer Available More info

Ship Weight:

0.2 KG Details

Product Description

Incorporating the new super accurate DS18B20 digital temperature sensor, this thermometer/thermostat kit provides an
accurate reading to 1 decimal point. The LCD shows current, min and max temperatures. An internal buzzer sounds whenever over temperature or under temperature limits are exceeded. Ideally suited for monitoring air conditioners, cool rooms, wine cellars. Or activating fans, heating/cooling equipment. With onboard programming socket and free downloadable software (BASCOM) changes can easily be made to the program if required. (see web site for firmware and software).

Features

• Sensor can be wired up to 300m away
• Measures from -55°C to +125°C
• 0.1°C accuracy from -10°C to +85°C
• N/O or N/C contacts, plus buzzer alert for over and under alarms
• Adjustable hysterises to stop output oscillation
• Requires 12V DC plugpack

Product Warranty

1 Year Return to Base
