Redback 16 Channel True Diversity UHF Wireless Microphone System
|
|
|
|
| Our Price: | $378.00 |
| |
| Techtronics Part No: | 105912 | |
| Usually Ships: |
1-3 Days
|
Details
|
| Brand: | Redback |
|
| Manuf No: | C8870C |
| Shipping Weight: | 2 KG |
How Much? |
| Date Added: | 2/4/2009 | |
| Rating: |
Not Rated
| |
| Currency: | AUD |
Convert |
|
|
Product Description
|
|
The Redback C 8870C UHF radio microphone system uses the latest PLL synthesised technology, ensuring a consistent and clear microphone signal with minimal dropout and noise interference. Surface mount technology and miniaturised RF components are used for maximum reliability and performance. Each system is pre-programmed with 16 UHF channels, allowing the user to select non-interfering frequencies in a multi system environment. An on board microchip monitors the signal strength received by both antennas, and automatically processes the best quality signal. It includes a noise reduction system which automatically compensates for high level sound inputs thus avoiding distortion. An operating range of up to 70m is possible in ideal conditions. Hand held, lavalier microphone and headband microphone transmitters are available for use with the receiver. Power and the active channel (A or B) and RF level LED indication are provided on the front of the unit. Supplied with a 12V DC power supply.
System Features
|
Operates on UHF frequency band range 790-806MHz.
PLL (Phase Locked Loop) synthesized wireless microphone system with 16 selectable frequencies making it easy to choose interference free channels.
Excellent reception system ensures super high sensitivity.
Units are supplied with SMT assembled PCB modules ensuring high reliability, and easy serviceability.
High signal-noise ratio, high sensitivity & wide dynamic range.
|
Receiver Features
|
12V-18V DC Power Supply (supplied)
Easy rotary switch selection of frequencies all hidden from users view.
1/2 19" size case with power & RF indicators. Rack Ears available for mounting one or two systems into 19" rack equipment.
Removable aerials making the unit suitable for portable or fixed installations. Aerials are fitted with TNC connectors.
Includes in-built power supply for C 8842 antenna booster.
|
Specifications
|
Carrier Frequency Range: UHF band 790~806MHz
Frequency Stability: ±0.005% with PLL synthesized controlled
S/N Ratio: at 8dB/µV over 80dB
Image and Spurious Rejection: 80 dB minimum.
Receiving Sensitivity: 8 dB/µV, at 80 dB S/N ratio.
Selectivity: More than 50dB
Dynamic Range: More than 96dB
Modulation Mode: FM.
IF Frequency: 1ST : 56MHz 2ND: 10.7MHz
Service Area: Over 50 metres
AF Response: 50Hz to 15KHz(±3dB)
T.H.D.: Less than 1% (at 1KHz)

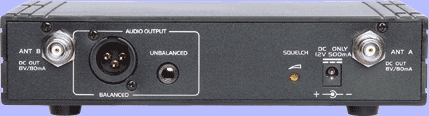

Receiver Audio Output: Unbalanced: max. 1000mV (0dB=1V) at 5K Ohm Load. Balanced: max. 100mV at 660 Ohm Load.
Receiver Power Supply: DC 12-18V Adapter
|
|
|
Product Warranty
|
|
1 Year Return to Base
|
|
