NC543A IP Cameras
Overview
Product Description
The NC543A is an IP camera that records at 25fps at 1080p (1920x1080) resolution with a 2.8-12mm varifocal lens, and has a Sony sensor.
Record footage in even pitch black conditions with this CCTV cameras infrared illumination, up to a range of 15 metres.

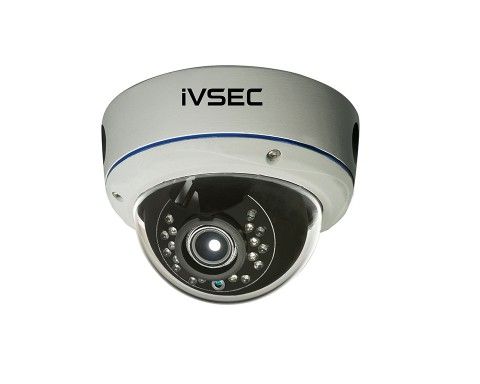

An attractive dome surveillance camera with modern white housing, it comes with multiple brackets and mounting options available for a professional install.
Remotely view footage from your security cameras (live or playback) over the internet via your PC, mobile, or tablet.
Simple installation software and Power over Ethernet (PoE) may reduce the installation cost of your surveillance cameras.
Resistant to water and vandals, this security camera is a good choice for both indoor and outdoor applications.
Main features:Dome IP Camera, 2MP @ 25fps, Sony sensor, 2.8-12 mm lens, PoE, IP65, Vandal resistant, IR, ICR, 3 year warranty.
Additional Information
| Camera Type |
Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.8" SONY 2MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
25 |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0 Lux (IR ON) |
| Day/Night Mode |
Built in ICR |
| Maximum Night IR Distance (M) |
15 |
| Protocols |
TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPnP, SMTP |
| Intelligent Video |
Motion Detection, Video Loss, Network Anomaly, Tampering Detection, Storage Exception |
| Software |
Device Manager Tool, Video Monitor Software, Mobile App. |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Connectors |
RJ-45, DC Power Input, Analog Video Output |
| UPNP |
Yes |
| In The Box |
Power Adapter, Power Cable, CD-ROM (User Manual, Free Bundle Software) |
| Model |
NC543A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (-14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
150x112 mm |
| Weight |
1.200000 |
