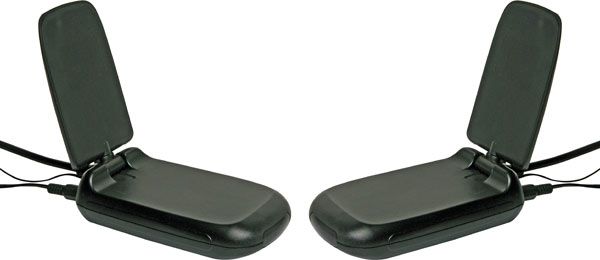

S9359 - 5.8Ghz Wireless AV Sender & IR Repeater
Overview
Designed for transmitting composite video and stereo audio to a second television. For example a VCR or DVD could be transmitted from your main viewing area to a bedroom or games room up to 30m away. The IR repeater also enables the VCR or DVD remote control to be used in the second room.
Features
- Selectable 7 channel 5.8GHz
- Transmits crisp AV signal
- Remote control the AV source with built in IR repeater
- Wide band IR receiver suitable for use with RC6 code equipment (eg. Foxtel Foxtel IQ)
- Compatible with CCD/CMOS cameras
- Supplied with RCA AV cable and IR eye lead
- Plugpacks included
Applications:
Simultaneous viewing of video programs on a 2nd TV/monitor without wires.
Wireless transmission of Hi-Fi stereo to any active speaker.
Remote monitoring of live video from a camcorder or CCD camera.
Local area broadcasting of audio/video programs for multiple viewers even in different rooms
Specifications
- Frequency Range: 5725 ~ 5875MHz
- Channel Selection: PLL Synthesizer 7CH
- Video/Audio Mod/Demod. Type.: FM-FM
- Video Polarity: Negative
- Supply Voltage: DC +9V
- DC IN Jack: 3.5mm
- Power On LED Indicator: Red
- Channel Selector: 2 Slide switches
- IR Remote Extender: Built-In
- Operating Frequency: 433.92MHz
- Antenna Type.: Patch Antenna
- Mod./ Demod. Type.: ASK
Transmitter Spec
- Supply Current: 140mA 10mA(CE,FCC) / 340mA 10mA(High power)
- Input Port: 3.5mm AV Phone Jack
- Output Power: 13dBm 1dB ( CE ) / 0dBm 1dB ( FCC ) 20dBm 2dB (High power)
IR Extender Receiver
- Receiving Sensitivity: -95dBm,min
- IR Carrier Frequency: 32 ~ 57KHz
- IR LED Operation Range: 4~5 Meters
- External IR LED Port: 2.5mm Mono Phone Jack
Receiver Spec
- Supply Current: 230mA 20mA
- Output Port: 3.5mm AV Phone Jack
- Input Sensitivity: -85dBm, Typ. ( @ Video S/N Ratio19dB)
- Video Output: 1VP-P , typ. (0.2V)
- Video Frequency Response (+/-5 dB): 50Hz~5.5MHz
- Video S/N Ratio (100KHz, 1VP-P Sine Wave): 40dB,min
- Audio Output Signal Level (1KHz Sine Wave): 2VP-P, typ. (0.3Volt)
- Audio Output Frequency Range (6dB): 50Hz ~ 20KHz
- Audio S/N Ratio (1KHz @ 2VP-P): 50dB, typ. (3dB)
IR Extender Transmitter
- RF Output Power: 8dBm 2dB (CE) ; 0dBm 2dB (FCC)
- IR Receiver module carrier freq.: 32 ~ 57KHz
- IR Sensor Operation Range: 7.5 Meters, min
- IR Sensor Half Angle: 45Horizontal
Specifications are subject to change without notice.
