Vivotek ND8301 Network Video Recorder - 2xBay Removable HDD Tray, Full HD Local Display, RAID 0,1, Real-time 8-CH Live View & 4-CH Synchronous Playback, External eSATA Interface, USB, 2xGigLAN

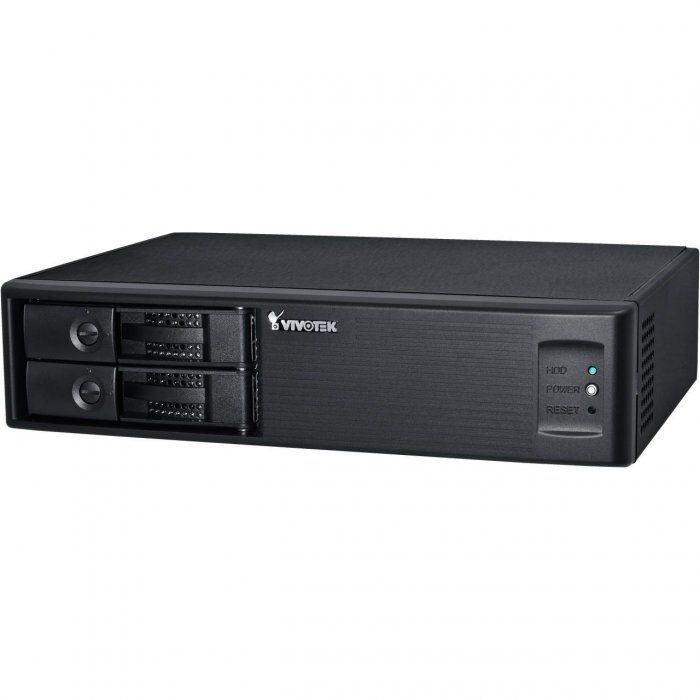

[Large image available]

Product May Vary From Image

Part No:

211008

Brand:

Vivotek

Manuf No:

ND8301

Usually Ships:

No Longer Available More info

Ship Weight:

5 KG Details

Product Description

VAST Inside HD Local Display Full Integration with VIVOTEK Network Cameras Network Video Recorder.

Overview

VIVOTEK ND8301 is an 8-CH Network Video Recorder designed for sophisticated recording applications. The unit is equipped with an Intel Dual-core Atom Processor with maximum recording throughput at a robust 96 Mbps. RAID 0/1 is supported with two removable HDDs for backup efficiency, with an external eSATA port for additional expansion. A first desktop type for the VIVOTEK NVR series, a local display output port is now available with full HD resolution (1920X1080), eliminating the need for a separate PC to view video from the unit. Setup of parameters such as IP, HDD, and basic camera configuration can easily be performed with the setup wizard, making the ND8301 the easiest NVR to use yet. When connecting ND8301 to more than one of the same model of VIVOTEK camera, the "Shepherd" program can be used to duplicate configuration settings to multiple cameras.

The operating system in ND8301 is VIVOTEK's professional central management software VAST, allowing for simple and effective management of a surveillance system using the LiveClient and Playback programs. As VIVOTEK's camera features are fully integrated into VAST, cutting-edge technologies such as SVC and Activity Adaptive Recording can be utilized to conserve bandwidth and optimize recording. A CMS server running VAST software can also directly control the ND8301 (VAST CMS support will be ready in 2013.), and compatibility with the iViewer application allows for remote access to the ND8301 on handheld devices. By integrating all of the components together using VIVOTEK's ND8301, network cameras, VAST and iViewer software, users can realize a fully-featured and robust next-generation surveillance system.

Features - Hardware

Dual-core Intel AtomTM Processor
RAID 0, 1 for Efficient and Reliable Recording
2 Bay Removable HDD Tray, Max. 6TB
External eSATA Interface
Full HD Local Display
Standalone Desktop NVR Design
Dual Gigabit Ethernet Ports
USB Port* 4
Compact Size: 315 mm (W) X 220 mm (D) X 75 mm (H)

Features - Software

Easy Installation and Configuration (Shepherd/Setup Wizard)
VAST Inside (LiveClient/Playback)
Real-time 8-CH Live View & 4-CH Synchronous Playback
SVC/H.264, MPEG-4 and MJPEG
Multiple Recording Types & Event Trigger Sources
Multiple Video Search Modes
E-map
Supported by VAST Central Management Software (VAST CMS support will be ready in 2013.)
Full Integration with VIVOTEK Network Cameras
VIVOTEK iViewer Support (iOS/Android)

These specifications are subject to change without notice.

Specifications:

System	CPU: Dual-core Intel Atom^TM RAM: 2GB DDRIII Embedded OS: Windows 7
Backup	Manual/Scheduled backup
Camera Compatibility	Full Integration with VIVOTEK Network Cameras
EasySetup	"Setup Wizard" for Network/HDD/Camera easy setup
Export	Format: AVI/3GPP/EXE
Language Support	English, French, German, Italian, Spanish, Traditional Chinese, Simplified Chinese, Japanese, Portuguese, Czech
Local LiveView Monitor	Display Layout: 1X1/2X2/3X3/4X4/5X5/1+5/1+12/1+31 E-Map Snapshot PiP Display Performance: MPEG-4: 2 streams 30 fps @ 1080p; 12 streams 30 fps @ CIF H.264: 1 stream 30 fps @ 1080p; 7 streams 30 fps @ CIF Auto Patrol (Display Layout) Pan/Tilt/Zoom control of VIVOTEK cameras Instant event notification Instant Replay: 20 sec., 30 sec., 1 min., 5 min., 15 min. Full HD local display by VGA connector
Local Playback	Display Layout: 1X1/2X2/3X3/4X4/1+5/1+12 Playback Mode: Play, Pause, Stop, Next/Frame, Next/Previous Time Interval, Speed Control Search Mode: Browsing/Time/Event Bookmark
Mobile APP Support	VIVOTEK iViewer (iOS/Android)
Recording	Throughput: Max. 96 Mbps Recording Policy: Scheduled recording (event/continuous modes), manual recording Video Compression: SVC/H.264/MJPEG/MPEG-4 Resolution: Up to 5-Megapixel recording Format: 3GPP Auto Recycling: Buffer size setting, time setting Activity Adaptive Recording
Storage	2 x removable 3.5" SATA I/II HDD, up to 6TB 1 x external eSATA interface RAID 0, 1
channels	8-CH
Connectors	2 x Gigabit, RJ45 4 x USB 2.0 1 x RS232
Alarm and Event Management	Trigger Source: Motion, Temperature, Tampering, DI/O, IR, PIR, IVA, Video lost, Recording error, Recording status, Substation connection status, Storage connection status, Storage capacity status, License status, Network status & memory status Actions: Email, Start recording, Move to the preset position, Set DO, GSM short message & Send CGI command
Security	5 levels of user roles Multi-level user access with password protection
Dimensions	315mm(W)x220mm(D)x75mm(H)
Weight	Net: 2270 g (without HHD)
LED Indicator	1 x Power Status 1 x HDD Status
Power	Input: AC 100-240 V, 50-60 Hz Output: DC 12V 5A (60 W) Power Consumption: Max. 31 W
Approvals	CE, FCC Class B, VCCI, C-Tick
Operating Environments	Temperature: 0C ~ 40C Humidity: 20%~95% RH
Warranty	24 months

Product Warranty

2-year Manufact.
