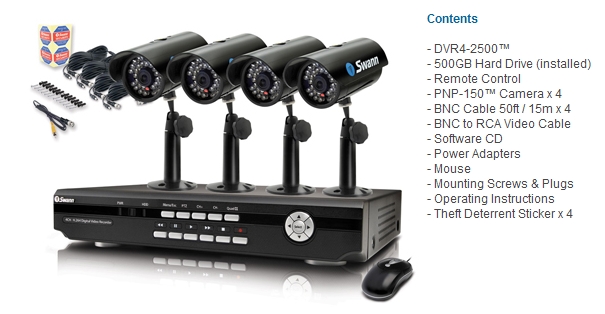

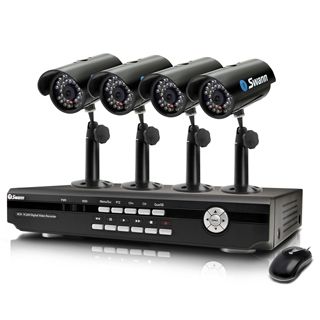

4 Channel DVR4-2500 & 4 x PNP-150 Cameras - Security Recorder Kit with Internet Viewing
Turn on the news or read the newspaper and youll see that crime is everywhere. The truth is your home, your business, and your children are constantly at risk and can easily fall victim to predators at any given moment. Having a reliable security solution is the only proven way to live your life without constant fear.
Now theres an easy and affordable way to monitor the people and places you care about the most. With 4-channel capability, the DVR4-2500 4 Channel DVR Security Recorder with Internet Viewing from Swann gives you the power to view and record footage from up to 4 security cameras at once, so youll never miss any suspicious activity. With the capability of set & forget recording, you can record continuously for up to 30 days without having to check settings or worry about hard drive space. Best of all, the DVR4-2500 has a built-in VGA connection so you can view on your PC or simply connect to your TV if you prefer. And the state-of-the-art H.264 recording technology gives you a higher image quality for a fraction of the file size. Dont wait for crime to strike you and your loved ones. Arm yourself with peace of mind with the DVR4-2500 4 Channel DVR from Swann.
The Swann PNP-150 Cameras are a versatile security solution that suits both indoor and outdoor applications. Featuring a robust, weather resistant ABS anti-corrosive casing, the cameras are ideal for areas subject to dust, rain or other wet environments. Providing clear color images during the day, the camera automatically switches to black & white mode at night, while the infra-red LEDs project invisible light up to 30ft/9m! Now you can monitor your premises at night and keep an eye on areas such as stairwells, secluded corners or alleyways that usually have little light!
Product Info
View on your TV or PC Monitor
Connect via AV or use VGA into your PC's Monitor
Have peace of mind even when you're away
Equipped with remote viewing softweare to stream over the web
Set & forget by recording continuously from from 4 cameras for over 30 days+
H.264 compression means less storage needed & higher image quality
Home or business security at an affordable price, with no ongoing fees
H.264 compression means less storage needed & higher image quality
Protect the people you care about & reduce the cost of crime
A state of the art solution for any home or business wanting complete protection
+based on continuous recording from 4 cameras at lowest possible setting
Specifications

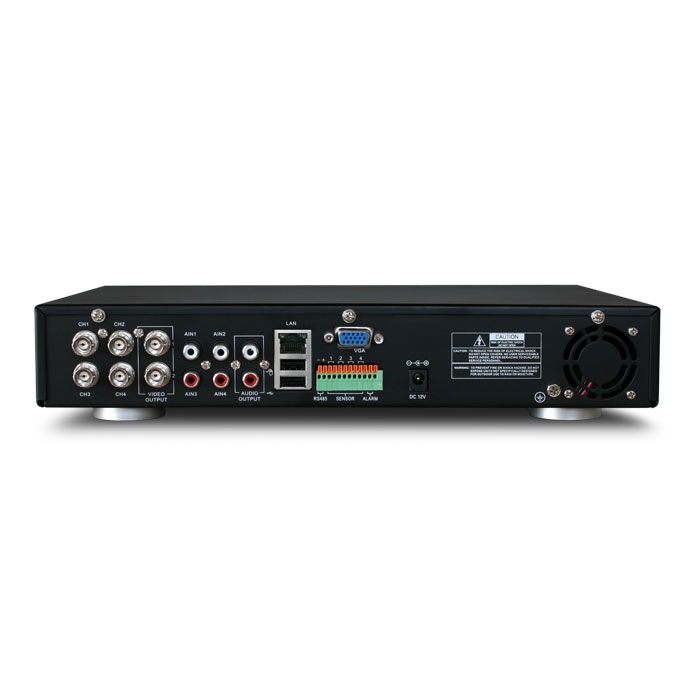

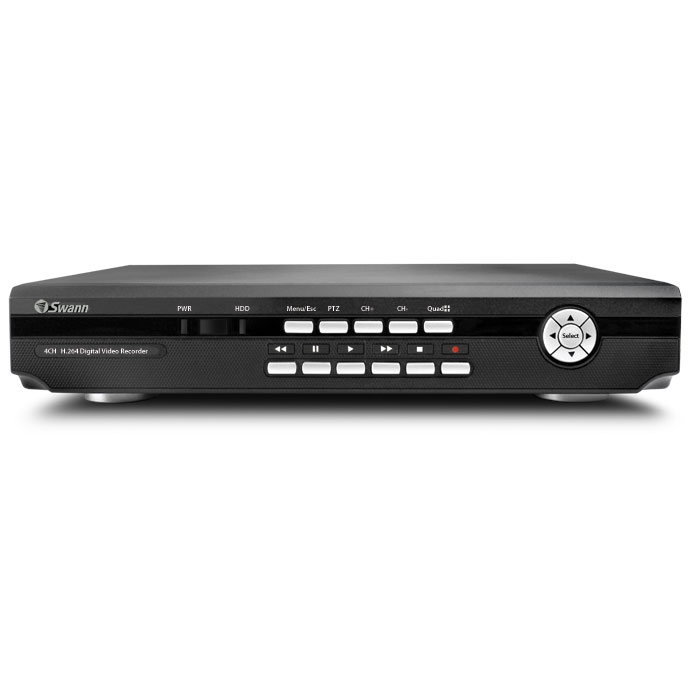

DVR4-2500
Video
Video Format - NTSC or PAL
Video Inputs - 4 Composite BNC Inputs
Video Outputs - 2 Composite BNC Outputs, VGA Out
Display Resolution - NTSC: 704 x 480, PAL: 704 x 576
Display Frame Rate - NTSC: 120fps, PAL: 100fps
Audio
Audio Input - 4 RCA Inputs
Audio Output - 2 RCA Outputs
Recording
Compression Format - H.264
Recording Resolution - NTSC: D1 (704 x 480), HD1 (704 x 240) CIF (352 x 240), PAL: D1 (704 x 576), HD1, (352 x 288), CIF (352 x 288)
Global Recording Frame Rate - NTSC: 30 fps D1, 60 fps HD1, 120 fps CIF , PAL: 25 fps D1,50 fps HD1, 100 fps CIF
Recording Modes - Manual / Motion / Schedule / Sensor
Multiplex Operation - Triplex
HDD Interface / SATA Memory Type
Hard Drive Support - Up to 1TB
Network
Lan Connection - Yes
Network Interface - RJ45
Network Protocol - TCP/IP, DDNS
Remote Operation - Yes
General
Operation Power - DC 12V
Dimensions - 12.4" x 8.9 x 2.4"
Weight 4.4lbs / 2KG
Backup Method - USB to Flash Drive
Mouse Support - Yes
Remote Control - Yes
Remote Control Battery Type - 2 x AAA
NTSC: D1 (704 x 480), HD1 (704 x 240) CIF (352 x 240)
NTSC: D1 (704 x 480), HD1 (704 x 240) CIF (352 x 240)
NTSC: D1 (704 x 480), HD1 (704 x 240) CIF (352 x 240)
Video

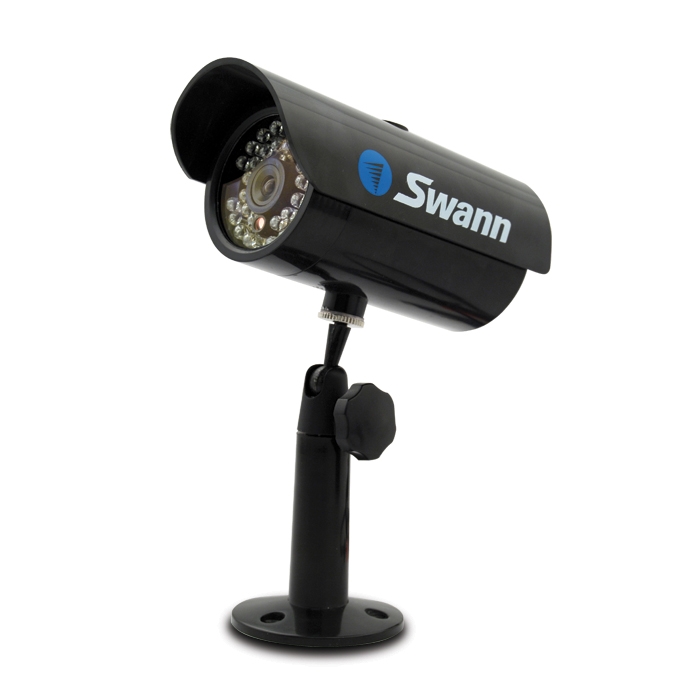

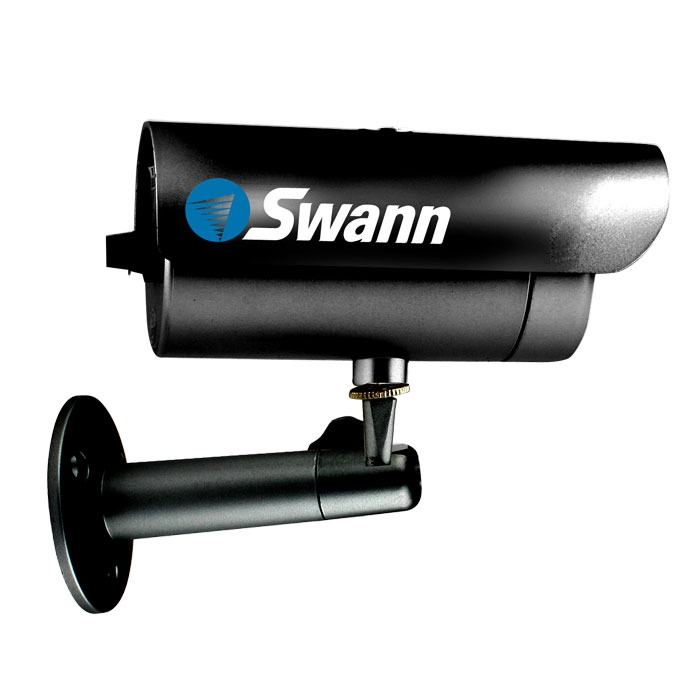

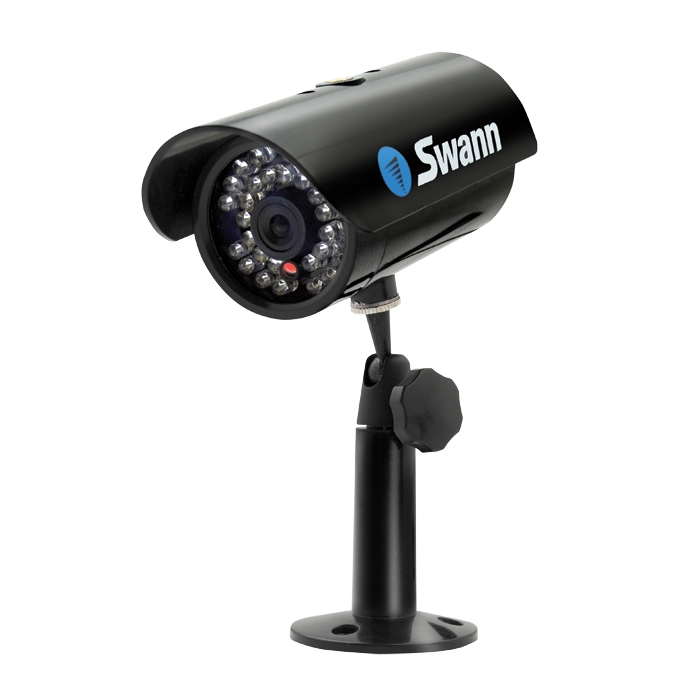

PNP-150 Camera
Image Sensor - 1/3" Super CMOS
Video Quality - 400 TV Lines
Number of Effective Pixels - 510 x 492 (NTSC), 628 x 582 (PAL)
Minimum IIIumination - 0 Lux (IR On)
Day/Night Mode - Color during day / Switches to B&W at night
White Balance - Automatic
Signal / Noise Ratio - > 50dB
Electronic Shutter - 1/60 - 1/15,000 NTSC , 1/50 - 1/15,000 PAL
Gain Control - Automatic
BackLight Compensation - Yes
Wide Dynamic Range - No
Lens - 6mm
Viewing Angle53
Audio
Microphone - No
Audio Range - No
Night Vision
Night Vision Distance - Up to 30ft / 9m
IR Cut Filter - No
Number of Infra-Red LEDS - 30
Infra-Red Wavelength - 850nm
Infra-Red LED Life - 10,000 hours
General
Indoor / Outdoor
Operation Power - DC 12V
Operating Temperature - 14F ~ 122F , -10C ~ 50C
Body Construction - ABS Plastic
Dimensions Camera & Stand - N/A
Dimensions Camera - 5.5 x 2.8 x 2.8 (140mm x 70mm x 70mm)
Dimensions - Stand - 4.5 x 2.3 x 2.3(120mm x 60mm x 60mm)
Weight - Camera - 0.4lbs / 180g
Weight Camera & Stand - 0.5lbs/235g
Cable Length - 50ft / 15m
Labelled Diagram
|
