Swann Security Recorder Kit - 8 x Pro 555 Cameras - Internet Viewing

Cart
Quantity:
Add Swann Security Recorder Kit - 8 x Pro 555 Cameras - Internet Viewing to your wishlist
Click here to write a review on Swann Security Recorder Kit - 8 x Pro 555 Cameras - Internet Viewing

Product May Vary From Image
[More images available]

Our Price:
$1,999.00

Techtronics Part No:136450
Usually Ships: 1-3 Days Details
Brand:Swann
Manuf No:SW343-8PE-AU015
 SW3438PEAU015
Shipping Weight:10 KG How Much?
Date Added:17/2/2010
Rating: Not Rated
Currency:AUD Convert

Product Description

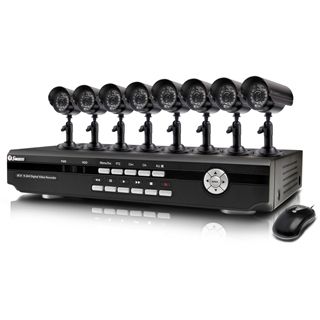

8 Channel DVR8-2500 & 8 x PRO-555 Cameras - Security Recorder Kit with Internet Viewing


8 Channel Digital Video Recorder with pre-installed 500GB HDD / H.264 latest recording technology / Web Connection for remote viewing / Transfer incidents to USB flash drive / 8 x PRO-555 CCD Cameras with 420 TV Lines / 50ft 15m Excellent night vision

 When it comes to protecting your home, your business or your family, theres simply no substitute for peace of mind. Whether youre concerned about crime, vandalism, common household safety or simply want to have an extra set of eyes watching at all times, the DVR8-2500 is the recording solution for you.

Now theres a convenient and affordable way to keep an eye on the people and places you care about the most. The Security Recording Kit with Internet Viewing gives you everything you need to monitor, record and capture video footage for your home or business. With 8-channel capability, the DVR8-2500 arms you with the power to view and record footage from up to 8 security cameras at once, so youll never miss any suspicious activity. The Kit also includes eight PRO-555 CCD video cameras that can capture crystal-clear footage during the day and enable night time viewing up to 50 feet away. With set & forget recording, you can record continuously for up to 15 days without having to check settings or worry about hard drive space. And the state-of-the-art H.264 recording technology gives you a higher image quality for a fraction of the file size. Peace of mind has never been more convenient with the DVR8-2500 Security Recording Kit with Internet Viewing.


Product Info

  • High quality video cameras with state-of-the-art 420 TV line CCD resolution
  • Night vision captures image clarity up to 50ft (15m) away
  • Input all 8 cameras at once for a total comprehensive security solution
  • View & record 8 channels simultaneously so you wont miss any suspicious activity
  • VGA connection lets you connect a spare PC monitor to view your DVR instead of a TV
  • Easily connects to any TV for additional viewing capabilities
  • Equipped with remote viewing software to stream over the web remotely
  • Lets you set & forget by recording continuously from all 8 cameras for over 15 days
  • Durable, all-weather aluminum camera housing protects the camera from the effects of weather damage.
  • Cutting-edge H.264 recording technology means less storage needed & higher image quality
  • Professional security solution for home or business at a fraction of the price with no ongoing monthly fees
    + based on the lowest recording settings

    • Specifications

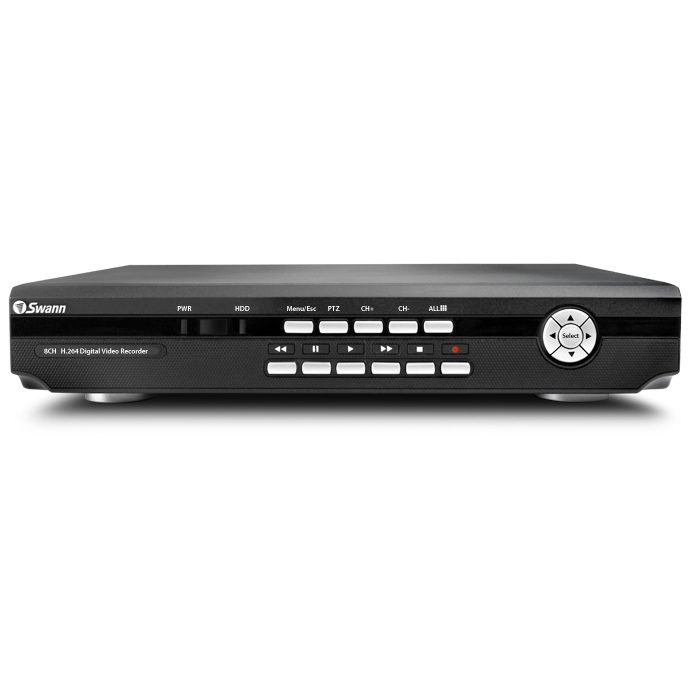

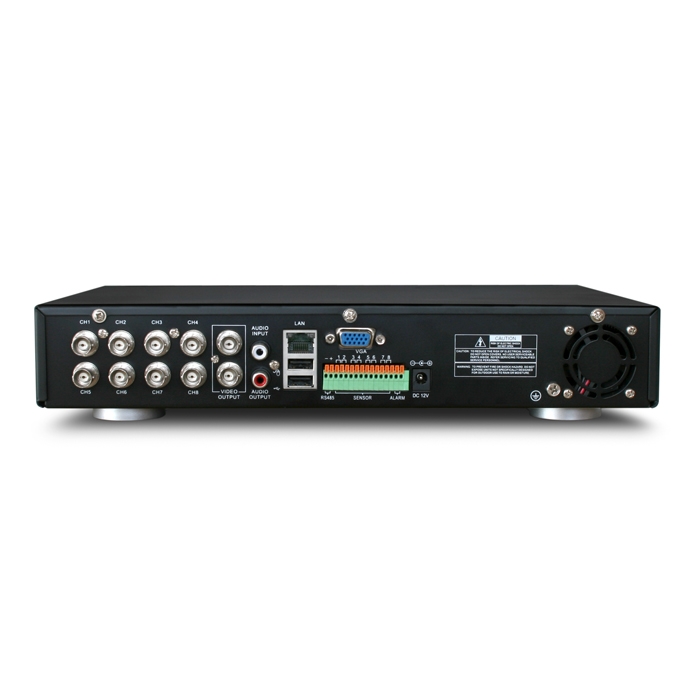

    DVR8-2500
    Video
    Video Format - NTSC or PAL
    Video Inputs - 8 Composite BNC Inputs
    Video Outputs - 2 Composite BNC Outputs, VGA Out
    Display Resolution - NTSC: 704 x 480, PAL: 704 x 576
    Display Frame Rate - NTSC: 120fps, PAL: 100fps

    Audio
    Audio Input - 1 RCA Input
    Audio OUtput - 1 RCA Output

    Recording
    Compression Format - H.264
    Recording Resolution - NTSC: CIF (352240), PAL: CIF (352288)
    Recording Frame - NTSC: 240 fps CIF, PAL: 200 fps CIF
    Recording Modes - Manual / Motion / Schedule / Sensor
    Multiplex Operation - Triplex
    HDD Interface - SATA, Memory Type -
    Hard Drive Support - Up to 1TB

    Network
    Lan Connection - Yes
    Network Interface - RJ45
    Network Protolcol - TCP/IP, DDNS
    Remote Operation - Yes

    General
    Operating Power - DC 12V
    Dimensions - 12.4" x 8.9" x 2.4", 315mm x 225mm x60mm
    Weight - 4.4lbs / 2kg
    Backup Method - USB to Flash Drive
    Mouse Support - Yes
    Remote Control - Yes
    Remote Control Battery Type - 2 x AAA

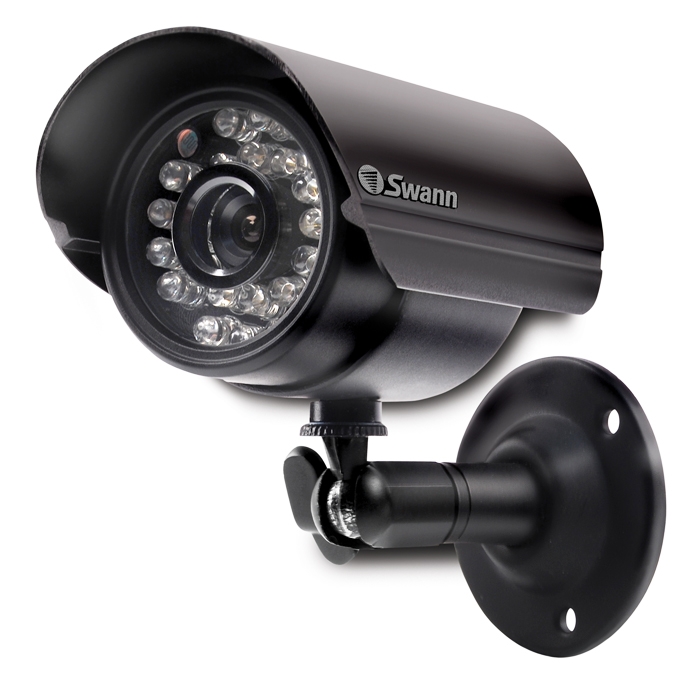

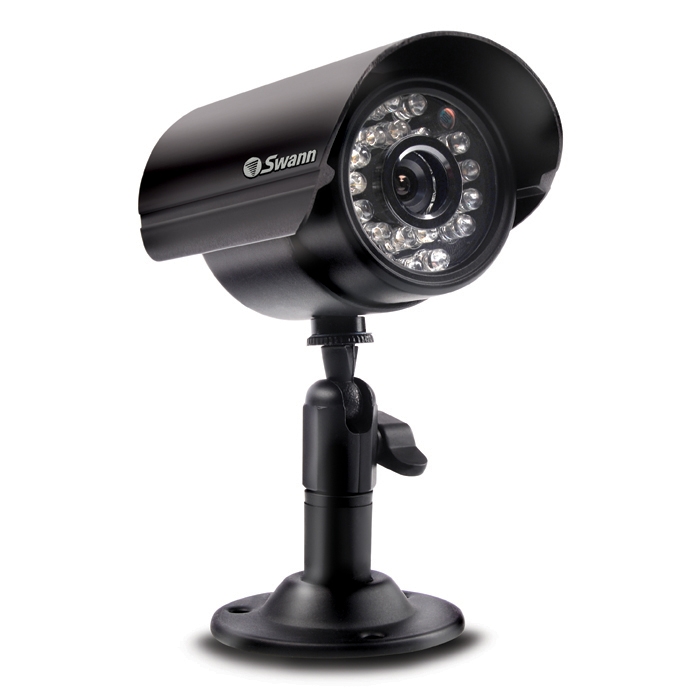

    PRO-555 CCD Camera
    Video
    Image Sensor - 1/4" CCD
    Video Quality - 420 TV Lines
    Number of effective Pixels - NTSC:510x492, PAL 628x582
    Minimum IIIumination - 0 Lux (IR on)
    Day/Night Mode - Color during day / switches to B&W at night
    White Balance - Automatic
    Signal / Noise Ratio - > 50dB
    Electronic Shutter - 1/60 - 1/100,000 NTSC, 1/50 - 1/100,000 PAL
    Gain Control - Automatic
    Backlight Compensation - Yes
    Wide Dynamic Range - No
    Lens - 6mm
    Viewing Angle - 41
    Audio
    Microphone - No
    Audio Range - N/A

    Night Vision
    Night Vision Distance - Up to 50ft/ 15m
    IR Cut Filter - No
    Number of Infra-Red LEDs - 27
    Infra-Red Wavelength - 850nm
    Infra-Red LED Life - 10,000 Hours

    General
    Operation Power DC 12V
    Operating Temperature / -4F ~ 122F , -20C ~ 50C
    Body Construction - Aluminum
    Dimensions Camera & Stand - 5.1" x 3.7" x 2.4" , 130mm x 95mm x 60mm
    Dimensions - Stand - N/A
    Weight - Camera - N/A
    Weight - Camera & Stand / 15oz / 415g
    Cable Length / 50ft / 15m

    Labelled Diagram

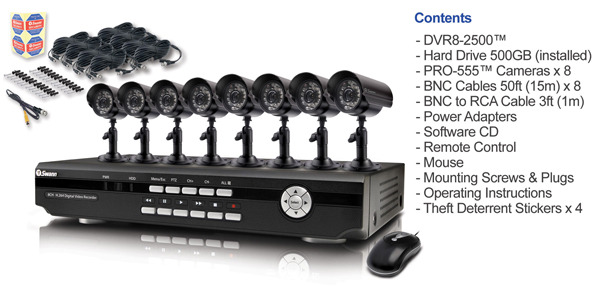

    What's in the Box?

    Product Warranty


    1 Year Return to Base
