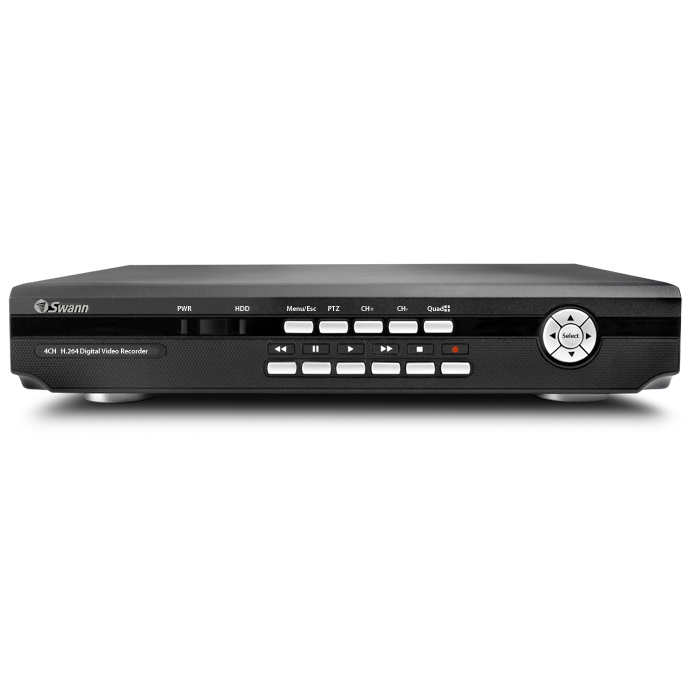

4 Channel DVR4-2500 & 4 x PRO 555 Cameras - Security Recorder Kit with Internet Viewing & 3G iPhone Connectivity
4 Channel Digital Video Recorder with pre-installed 500GB HDD / H.264 latest recording technology / Web Connection for remote viewing / Transfer incidents to flash drive / Includes 4 x CCD Cameras with 420 TV Lines / 50ft 15m excellent night vision
When it comes to protecting your home, your business or your family, theres simply no substitute for peace of mind. Whether youre concerned about crime, vandalism, common household safety or simply want to have an extra set of eyes watching at all times. You can also download a free iPhone 'app' to view 4 cameras on your 3G enabled iPhone.
Now theres a convenient and affordable way to keep an eye on the people and places you care about the most. This Security Recording Kit with Internet Viewing gives you everything you need to monitor, record and capture video footage for your home or business. With 4-channel capability, the DVR4-2500 arms you with the power to view and record footage from up to 4 security cameras at once, so youll never miss any suspicious activity. As an added bonus, the Kit also includes four PRO-555 CCD video cameras that can capture crystal-clear footage day and night from up to 50ft / 15m away. With set & forget recording, you can record continuously for up to 30 days without having to check settings or worry about hard drive space. And the state-of-the-art H.264 recording technology gives you a higher image quality for a fraction of the file size. Peace of mind has never been more convenient with the 4 Channel DVR4-2500 & 4 PRO-555 Cameras - Security Recorder Kit with Internet Viewing.
Product Info
- High quality video cameras with state-of-the-art 420 TV line CCD resolution
- State-of-the-art night vision captures high-image clarity up to 50ft (15m) away
- Input all 4 cameras at once for a total comprehensive security solution
- View & record 4 channels simultaneously so you wont miss any suspicious activity
- VGA connection lets you view on your PC to record or store footage
- Easily connects to any TV for additional viewing capabilities
- Equipped with remote viewing software to stream over the web remotely
- Lets you set & forget by recording continuously from all 4 cameras for over 30 days
- Durable, all-weather aluminum camera housing protects whats inside
- Cutting-edge H.264 recording technology means less storage needed & higher image quality
- Professional security solution for home or business at a fraction of the price with no ongoing monthly fees

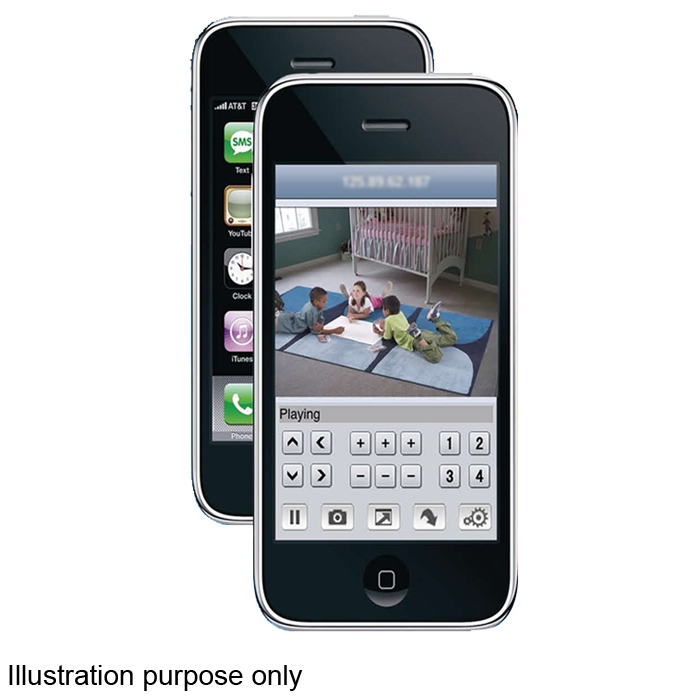

- View all four cameras in live mode with a downloadable 3G iPhone 'app'.
+ based on the lowest recording settings
Specifications
Video
Video Format - NTSC or PAL

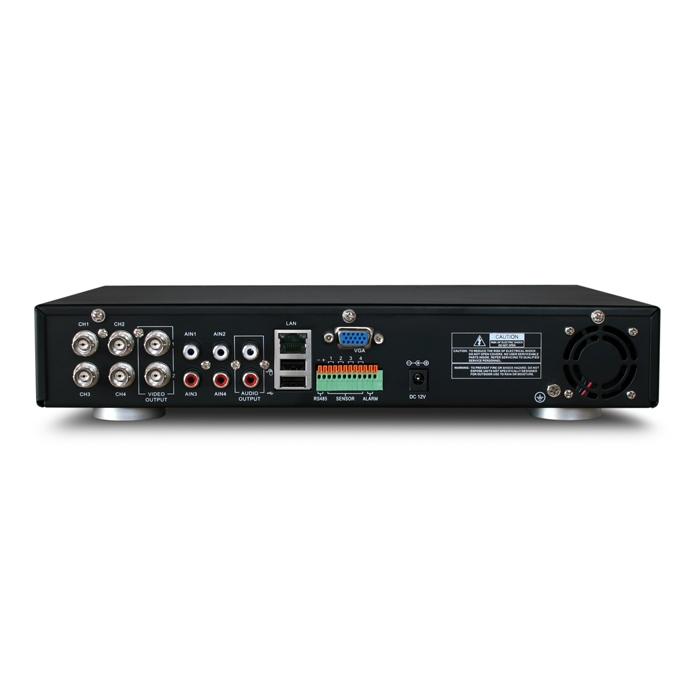

Video Inputs - 4 Composite BNC Inputs
Video Outputs - 2 Composite BNC Outputs, VGA Out
Display Resolution - NTSC: 704 x 480, PAL: 704 x 576
Display Frame Rate - NTSC: 120fps, PAL: 100fps
Audio
Audio Input - 4 RCA Inputs
Audio Output - 2 RCA Outputs
Recording
Compression Format - H.264
Recording Resolution - NTSC: D1 (704 x 480), HD1 (704 x 240) CIF (352 x 240), PAL: D1 (704 x 576), HD1, (352 x 288), CIF (352 x 288)
Global Recording - NTSC: 30 fps D1, 60 fps HD1, 120 fps CIF
Frame Rate - PAL: 25 fps D1,50 fps HD1, 100 fps CIF
Recording Modes - Manual / Motion / Schedule / Sensor
Multiplex Operation - Triplex
HDD Interface - SATA , Memory Type
Hard Drive Support - Up to 1TB
Network
LAN Connection - Yes
Network Interface - RJ45
Network Protocol - TCP/IP, DDNS
Remote Operation - Yes
General
Operating Power - DC 12V
Dimensions - 12.4" x 8.9" x 2.4", 315mm x 225mm x 60mm
Weight - 4.4lbs / 2 kg
Backup Method - USB to Flash Drive
Mouse Support - Yes
Remote Control - Yes
Remote Control - 2 x AAA, Battery Type

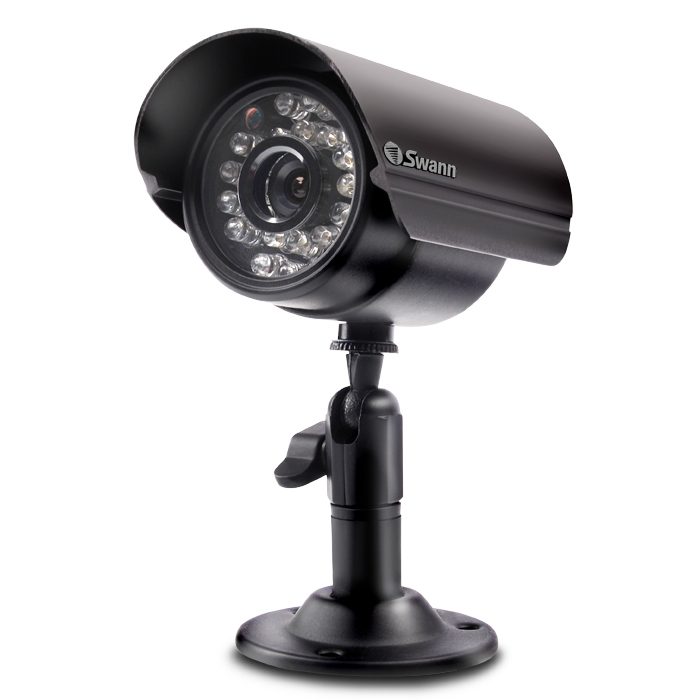

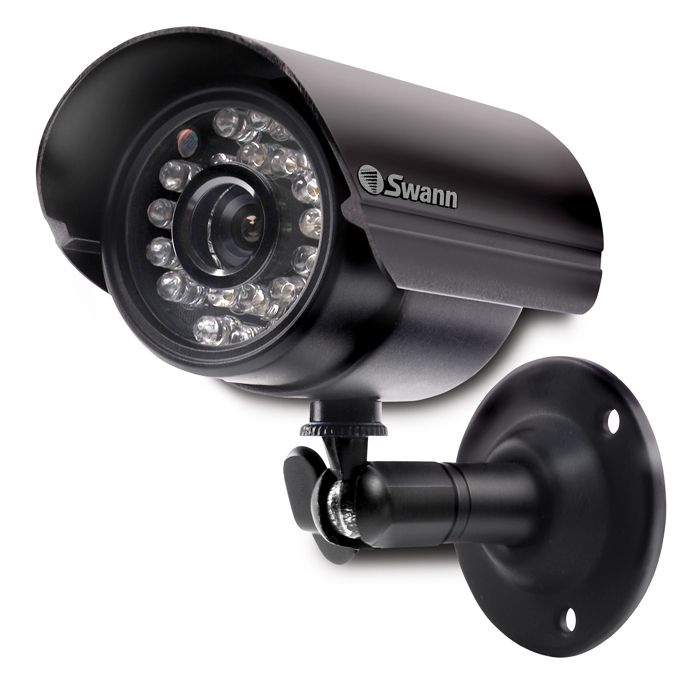

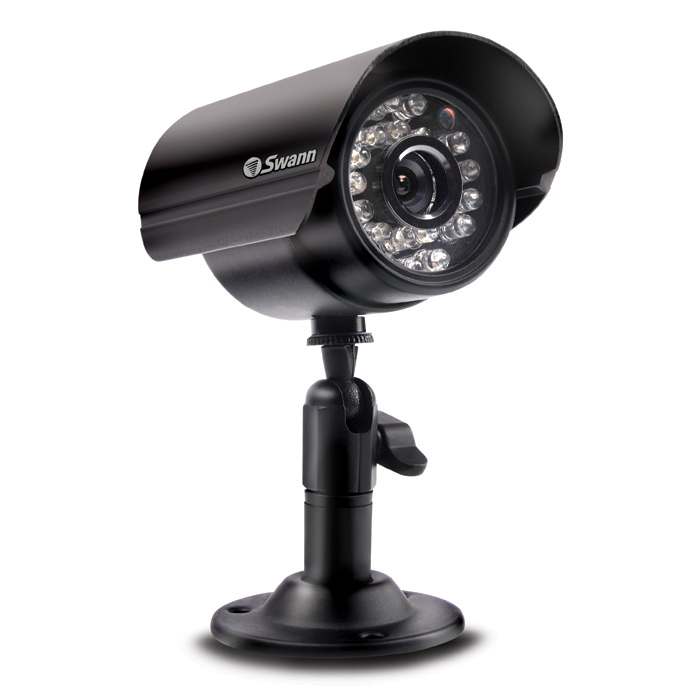

PRO-555 CCD Camera .
Video
Image Sensor - 1/4"
Video Quality - 420 TV Lines
Number of Effective - NTSC: 510 x 492
Pixels - PAL: 628x582
Day/Night Mode - Color during day / switches to B&W at night
White Balance - Automatic
Signal / Noise Ratio - > 50dB
Electronic Shutter - 1/60 - 1/100,000 NTSC - 1/50 - 1/100,000 PAL
Gain Control - Automatic
Backlight Compensation - Yes
Wide Dynamic Range - No
Lens - 6mm
Viewing Angle - 41°
Audio
Microphone - No
Audio Range - N/A
NightVision
Night Vision Distance - Up to 50ft / 15m
IR Cut Filter - No
Number of Infra-Red Leds - 27
Infra-Red Wavelength - 850nm
Infra-Red LED - Life 10,000 Hours
General
Operating Power - DC 12V
Operating - -4F ~ 122F
Temperature - -20C ~ 50C
Body Constrction - Aluminum
Dimensions - 5.1" x 3.7" x 2.4"
Camera & Stand 130mm x 95mm x 60mm
Dimensions - Stand N/A
Weight - Camera & Stand - 150oz / 415g
Cable Length - 50ft / 15m
Labelled Diagram

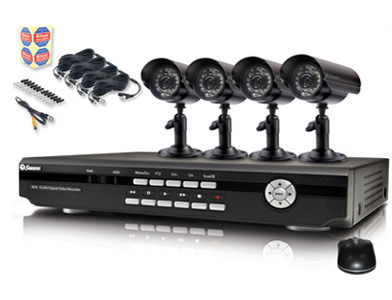

What's in the Box?
Contents
- DVR4-2500
- Hard Drive 500GB (installed)
- PRO-555 Camera x 4
- BNC Cable 50ft (15m) x 4
- BNC to RCA Cable 3ft (1m)
- Remote Control
- Software CD
- Mouse
- Power Adapters
- Mounting Screws & Plugs
- Operating Instructions
- Theft Deterrent Sticker x 4
|
