AEI 8 Zone Alarm System Package - DIY
Perfect for Typical Homes or Small Business and is more Affordable than Ever!

This package contains everything required to set up and alarm system for the typical home or small business.

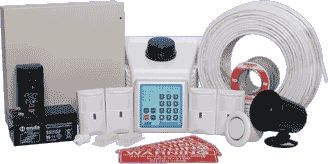

PACKAGE INCLUDES:
S5268 8 sector alarm system
S5314A PIR motion detectors x 4
S5445 Blue flashing strobe
M9332 16V AC earthed plugpack
S5090B 7.2Ah backup battery
S5462 Siren cover
S6122A Internal siren
S6125 External siren
W2095 Figure 8 hookup cable x 30m
S5400 Alarm stickers x 4
W2370 6 core cable x 100m
S5160 Tamper switch
S5153 Surface mount reed switches x 2



This new 8 zone system is perfect for typical homes and is more affordable than ever.
Don't become a crime statistic! Install one of these high quality AEI alarms yourself and save hundreds on installation costs. Great for small business or home! The system is supplied in two parts. The main controller which consists of a steel enclosure which houses the electronics, power supply, backup battery and field wiring connections. This would generally be installed in a hidden location. ie. hall cupboard, pantry, laundry, etc. The remote keypad is located at the point of entry and exit. ie. typically the front door. Once installed, this controls the entire alarm system. The system is armed and disarmed by a user selectable code which is keyed into the panel. All system functions such as entry / exit delay, alarm duration, zone type are programmed directly from the remote keypad. Full system status is displayed on the keypad indicating any zone tripped, low battery, recording, silent trip, arm prohibited. Panic & duress alarm functions are also available. Up to 3 additional keypads may be installed as required. The dialler function can call up to 4 separate numbers when the alarm is triggered. It is capable of playing a user recordable message (up to 20 seconds long). This is especially useful for notifying yourself or friends when your home or business is being broken into. Note: Power supply and battery not included, see text below. Control box dimensions: 265 x 270 x 78mm,
Keypad dimensions: 117 x 117 x 27mm. S 5268 includes lockbox with alarm circuitry and keypad.





• Separate keypad and control unit
• Keypad suits standard 2 gang wallbox or surface mount block
• Programmable master code, client code and 8 user codes
• All user codes are equipped with duress function
• Dialler function can phone up to 4 numbers
• Recordable message for dialler function
• 8 programmable zones
• 2 “software zones” for panic & duress alarms
• All zones can be configured for single or multiple triggering
• Full memory of alarm events
• Programmable entry / exit delay and alarm duration
• Programmable response time for each zone
• Exit/ entry beep enable / disable options
• Instant arming codes for home or away options
• Provision for arm / disarm with up to 3 remote keypads
• Power watchdog resets the system before the battery is exhausted
• Non-volatile memory
• Connection for remote siren and strobe
• Built in dynamic battery charger and tester
• Battery condition can be checked manually or automatically
• AC or DC operation
• Battery backup option
• 12 months warranty
