NoBrand High Efficiency Star LED Power Kit - Requires 12V DC Input

[Large image available]

Product May Vary From Image

Part No:

107565

Brand:

NoBrand

Manuf No:

K1010

Usually Ships:

No Longer Available More info

Ship Weight:

0.173 KG Details

Product Description

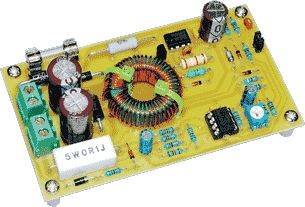

A simple switchmode power supply module which is capable of powering up to two 1W/3W luxeon stars, or alternatively a single 5W luxeon star. The unique switchmode regulation employed means that it is very efficient and produces very little heat. Its 12V input makes it perfect for boats, cars, caravans. Anywhere low voltage lighting might be required.

The project can be powered from any 12V DC (nominal) supply and can be set up to source 350mA, 700mA or 1000mA of regulated current to suit all of the Luxeon Star LED range.

Features

Powers one or two 1W or 3W Stars, or a single 5W Star
High efficiency for minimum battery drain
Low battery cutout (11.5V)
Input polarity & transient protected
Output short-circuit protected
Ideal for use in boats, caravans & car

Product Warranty

1 Year Return to Base
