These state-of-the-art modular paging systems utilising microprocessor controlled circuitry enable transmissions from the microphone console, including switching functions, to be carried via standard cat 5 data cable over a maximum distance of 300m. Suitable for use in offices, factories, shopping centres, airports, pubs, clubs, hotels, motels, in fact anywhere there is a requirement for a programmable paging & background music (BGM) system. Expandable from eight (basic configuration) to sixteen independent zones, each zone may be paged either individually or together with the use of the All-Call function. The all-call function may be disabled if it is not required. A 'macro' function is also provided to enable the user to program a 'zone switch' for one touch operation of multiple zones. Each microphone console may be individually programmed.
Microphone consoles - The system can accommodate up to 8 mic consoles on 4 individual circuits, maximum of 2 consoles per circuit. Each console is capable of operating 16 zones. A LED indicator per zone switch illuminates when selected. Cancelling a selected zone can be achieved by pressing the zone switch again, via the cancel switch or automatically if not used after approximately 10 seconds. A busy indicator LED is also fitted to all microphone consoles to indicate when the system is in use. Console 1 can be configured for priority operation over consoles 2-4. Includes zone identification strips for custom labelling.

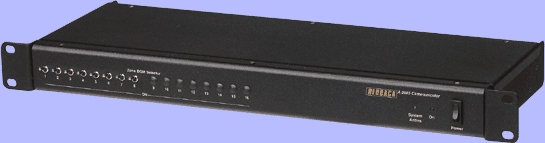

Control box - Consisting of a 1U 19" cabinet housing the switching circuitry. The control box is of a modular design with switching for 8 zones. An additional 8 zone card may be installed, providing a total of 16 zones. The control box will accept up to 4 paging console input circuits. Two mic consoles can be used on each circuit on a loop in, loop out basis. Console 1 may be configured to have priority over all other consoles, otherwise the system operates on a FIBD (first in best dressed) basis. Background music is selectable on or off to any zone via the selection switches at the control box.
This model allows the system to be configured to use either one or two amplifiers:
Single amplifier mode - With one amplifier connected to the system, BGM and paging can be distributed to any zone as desired. However, BGM will be interrupted to all zones when paging to any zone.
Dual amplifier mode - When separate PA and BGM amplifiers are used, paging can be selected without interrupting BGM to remaining zones.
Features:
|
• Conforms to 1U 19" rack mount dimensions
• Selectable pre-announcement chime
• Selectable BGM for each zone
• Modular design allows up to 16 zones
• Accepts up to 4 paging consoles
• Paging consoles connect via 8 core twisted pair cable
• Paging consoles can be up to 300m from switch box
• Operates from 240V AC / 24V DC
• All Inputs/Outputs via Pluggable Terminals
• Suitable for 1 or 2 Amplifier systems
• Active zone indicators
• Each zone has 500W power handling
• Australian designed and assembled
10 Year Warranty
|
Specifications:
|
Data Transmission: 8 Core Twisted Pair (Cat5) Cable
Operating Distance: up to 300m
Zone Configuration: from 8 to 16 Zones
Power Handling: 500W per Zone
Paging Console Output Level: 1V Unbalanced
Operating Voltage: 240V AC/ 24V DC
Current Draw: 80mA (idle), 530mA (16 Zone), 360mA (8 Zone)
Colour: Black
Dimensions: (Console) 190W x 135D x 55H mm Approx.
(Switch box) 482W x 152D x 88H mm
* Specifications subject to change without notice.
|
