NOW EQUIPPED WITH 4 XLR MIC & 4 RCA LINE INPUTS
Designed to meet the requirements of medium sized professional public address installations, delivering an output power of 40W, 60W and 100W RMS respectively.
Frequency response extends from 60Hz to 15kHz at a total harmonic distortion (THD) of less than 0.5%. Features include, VOX muting, four balanced line microphone inputs, four stereo line input sockets, and separate bass and treble controls enabling a diversity of installation applications, including schools, public halls, workshops and sporting complexes.
VOX muting is in-built and can be activated on inputs 1 & 2 as required via the internal jumpers. Once activated input 1 will override all other inputs, including the alert/evac input. Input 2 will override inputs 3 & 4.
Powered from 240VAC mains or 24VDC permitting battery backup operation during mains power failure. Output is 100V/70V line or low impedance (4 - 16 Ohm) speaker loads. Note: 70V line is unavailable on the A 4036 40W amplifier.
All units feature thermal overload shutdown to protect the amplifier if a speaker fault condition develops.
Master volume can be controlled remotely via a figure 8 cable and a A 2280A wall control unit or 1K potentiometer (part no. R 2202).
Features:
|
Desk or 19" rack mountable
Low noise and distortion levels
4 balanced microphone inputs
4 stereo to mono auxiliary inputs
Internally selectable phantom power
Optional tone generator board (A 2073)
Selectable VOX muting on inputs 1 & 2
Optional remote volume adjustment
Bass and treble tone controls
Output for 70V*, 100V line and 4 - 16 Ohm loads
240V AC or 24V DC operation
Thermal overload shutdown protection
10 year warranty
Australian Made
*70V line unavailable on A 4036 40W model
|
Specifications
|
?Power Output
A 4036: 40 watts RMS
A 4041: 60 watts RMS
A 4046: 100 watts RMS
Distortion: < 0.5% @ 1kHz
Signal to Noise Ratio
Typically 75dB below rated output. All inputs.
Frequency Response
Mic inputs: 50Hz - 10kHz, -3dB
Line inputs: 60Hz - 15kHz, -3dB
Output line: 70V*, 100V or 4 - 16O (Note. 70V unavailable on A 4036)
Input Sensitivity
Mic inputs: 1.5mV balanced
Line inputs: 400mV

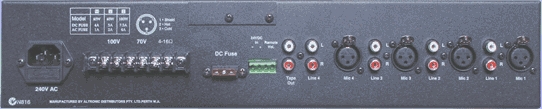

Output Connectors
Speakers:Screw terminals
Input Connectors
Mic 1-4: 3 pin XLR balanced
Line inputs 1-4: RCA stereo socket
24V DC power: Screw terminals
240V AC power: IEC power connector
Muting: VOX on inputs 1 & 2, 60dB below rated output
Remote volume: Screw terminals
Controls
Mic inputs: Volume
Line inputs: Volume
Bass: ±10dB @ 100Hz
Treble: ±13dB @ 10kHz
Power: On/off switch
Indicators: Power, Overload
Power supply: 240V AC or 24V DC
Protection
A 4036: 1A AC fuse and 4A DC fuse
A 4041: 2A AC fuse and 5A DC fuse
A 4046: 4A AC fuse and 7.5A DC fuse
Weight/ DIMENSIONS
A 4036: ˜7.1 kg
A 4041: ˜7.4kg
A 4046: ˜9kg
Dimensions: ˜423W x 225D x 88H mm
Colour: Black
|
