Super compact with surprising performance specifications, intended for smaller PA system applications. Our engineering team based the design around a National TDA1519 monolithic IC achieving virtually “destruction proof” operation under quite severe misuse such as over temperature, over voltage, over load and short circuit speaker line conditions.
The amplifier is extremely stable even where microphone (balanced line) and speaker cables are run together for long distances. The unit will automatically shut down when severely overloaded and will restore to normal operation when the fault condition is removed. Suitable as a stand alone desk/bench unit or rack mount with optional hardware. Up to 2 units can be accommodated side by side in 1RU of rack space (44mm high). Dual power input option of either 240VAC or 12-14VDC is provided, making it well suited for use in tour buses and mobile installations.
Features:
|
• 15W RMS
• 1 balanced XLR and unbalanced jack mic input
• 1 Line input
• 4-8Ω output
• 240VAC / 12-14VDC operation
• Phantom power

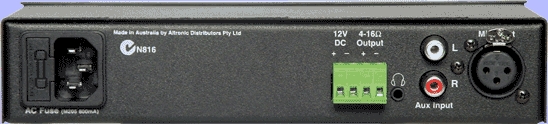

• 3.5mm headphone connector on rear panel
• 10 year warranty
• Australian Made
|
Specifications:
|
Power Output
A 4016: 15 watts RMS
Distortion: < 3% @ 1kHz
Signal to Noise Ratio: Typically > 75dB
Frequency Response
Mic input: 50Hz - 10kHz, -3dB
Line input: 60Hz - 15kHz, -3dB
Input Sensitivity:
Mic 1: 1.5mV balanced
1.5mV unbalanced
Line input: 500mV
Output Connectors
Speakers: Screw terminals
Output impedance: 4-8Ω
Input Connectors
Mic 1: 3 pin XLR balanced
or 6.35mm jack unbalanced
Line input: RCA stereo socket, bridged mono
12V DC power: Screw terminals
240V AC power: IEC power connector
Controls
Mic input: Volume
Line input: Volume
Power: On/off switch
Indicators: Power
Power supply: 240V AC or 12V DC
Protection: 1A AC fuse and 4A DC fuse
Weight: ≈2.5kg
Dimensions: ≈210W x 130D x 44H mm
Colour: Black
|
