State of the art 8 channel recording with H.264 compression and amazing features!
The latest H.264 video compression combined with networking, pentaplex operation and an arrray of powerful features for 8 camera monitoring & recording.
Advanced H.264 Recording
- State-of-the-art H264 compression records at a lower bit rate for high quality playback, longer recording with less storage required
- Amazing video images from 120fps recording, 240fps live view
- Ready to record with pre-installed 250GB Seagate SATA HDD
- Easy back-up of incidents via USB port
- Multiple recording modes including motion detection, timer, event recording (alarm, motion detection), recording list with playback in single or multi-screen mode
Easy to set-up and use
- Pentaplex operation for simultaneous recording, playback, setup, backup and network surveillance
- Enhanced simple to use graphic user interface (GUI) with mouse operation via USB
- View recorded video one channel at a time
Sophisticated networking
- Sophisticated network capabilities including remote live view, remote playback, PTZ camera control and remote menu setup
- Remote viewing is a snap with IE browser support from downloadable software
|
|
| Product Info |
Features
- Monitor & record up to 8 cameras simultaneously with an amazing array of features
- State-of-the-art H.264 compression records at a lower bit rate for high quality play back, longer recording with less storage required
- Amazing video images from 120 frames per second (fps) global recording and 240 fps in live view
- Pentaplex operation for simultaneous recording, playback, set-up, back-up and network surveillance
- Enhanced, simple to use 3D graphic user interface (GUI) with mouse operation via USB
- Sophisticated network capabilities including remote live view, remote playback, PTZ camera control and remote menu set-up
- Combine with up to 8 Swann Professional cameras for your own expanded home or business surveillance system 24/7
|
|
|
| Specifications |
|
|
Video |
|
Video Format:
|
NTSC or PAL |
|
Video Inputs
|
8 Composite BNC Inputs |
|
Video Outputs:
|
2 Composite BNC Outputs,
VGA Out, S-Video Out |
|
Display Resolution
|
NTSC: 720 x 480
PAL: 704 x 576 |
|
Display Frame Rate
|
NTSC: 240fps
PAL: 200fps |
|
|
Audio
|
|
Audio Input
|
4 RCA Inputs |
|
Audio Output
|
1 RCA Output |
|
|
Recording |
|
Compression Format
|
Standard H.264 Baseline
|
|
Recording Resolution
|
NTSC: 704 x 480, 352 x 240
PAL: 704 x 576, 352 x 288 |
|
Recording Frame Rate:
|
NTSC: 120fps Global, 15 fps Each
PAL: 100fps Global, 12.5 fps Each |
|
Recording Modes:
|
Manual / Sensor / Timer / Motion |
|
Multiplex Operation
|
Pentaplex |
|
HDD Interface / Memory Type:
|
2 x SATA, DVD-RW |
|
Hard Drive Support
|
Up to 1TB |
|
|
Network |
|
LAN Connection:
|
Yes |
|
Network Interface:
|
RJ45 |
|
Network Protocol:
|
Static IP, TCP/IP, DHCP, DDNS, PPPOE |
|
Remote Operation:
|
Yes |
|
|
General |
|
Operating Power
|
DC 12V |
|
Dimensions
|
15" x 17.4" x 2.6"
380mm x 435mm x 65mm |
|
Weight
|
7.7lbs / 3.5kg |
|
Back-up Method
|
Network, USB |
|
Mouse Support
|
Yes, USB, PS/2 |
|
Remote Control
|
Yes |
|
Remote Control Battery Type
|
2 x AAA |
|
|
Optional |
|
Email Notification
|
Yes |
|
|

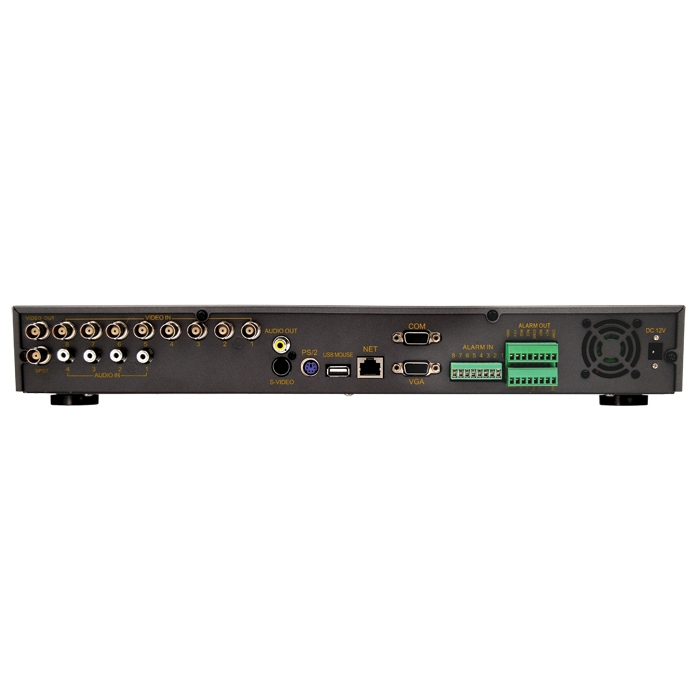

| Labelled Diagram |
|
|
| |

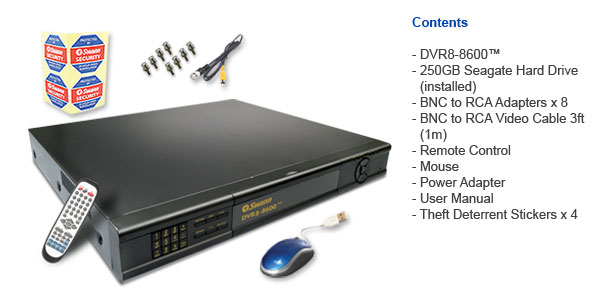

| What's in Box? |
*Note: Product contents may change without notice.
|
|
| |
|
|
