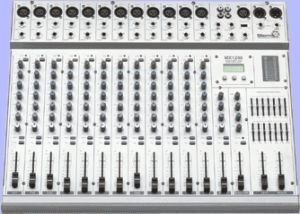

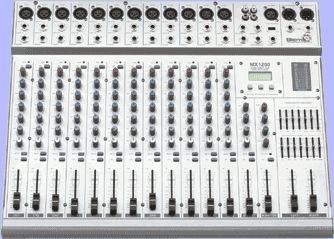

This professional 12 channel mixer is engineered for studio or live mixing use. It is compact, stylish and designed for ease of use. The uncluttered control layout allows hassle-free adjustment in live or studio mixing environments. It utilises the latest in surface mount device technology and ultra-low noise amplifier circuitry to ensure the highest level of performance. All 12 channels are identical and feature: balanced XLR, unbalanced 6.35mm and an insert input for connecting external effects, 20db input pad, separate high, mid, low frequency controls, monitor mix level, gain, effects level and left/right pan, mute and pre-fade listen (PFL) switches, low noise slide volume control, peak output LED
The mixer also features a 24 bit digital effects unit containing 8 different DSP effects; 2 x hall, 2 x room, 2 x delay, echo and reverb/delay. These can be applied to the master output, or an external effects processor may be used via the Effects Send and Return 6.35mm jacks.
There is also a separate Monitor output level slider and 6.35mm output connectors for use with an external mixing room monitor amp and speakers. A separate volume control and 6.35mm socket are provided for the headphone. RCA connectors are provided for master Record and Playback via cassette deck, and a 6.35mm socket is provided for Line input eg CD player for BGM.
Master outputs are via balanced XLR or unbalanced 6.35mm jack connectors. Output level is controlled by separate left and right channel ultra low noise sliders. Separate 7 band graphic equalisers for left and right channels are provided for final fine tuning of the Master output.
Features:
|
Heavy duty construction
All audio inputs & outputs top mounted for easy access
XLR balanced & 6.35mm jack unbalanced inputs & outputs
Ultra low noise amplifiers & sealed slider controls
Extremely high headroom on all inputs
Gain, monitor, effect, pan, high, mid & low levels controls plus PFL, mute and 20dB pad on all 12 channels
LED VU output level meter
XLR socket for lamp
Internal 24 bit effects unit
External effects send & return
Selectable phantom power
Separate main mix, monitor and headphone controls
7 band graphic EQ on Master output.
2 Year warranty
|
Specifications
|
Inputs: 12 x XLR balanced or 6.35mm unbalanced
Total THD: 0.01%
Gain bandwidth: 80kHz
Gain control range: -5dB to +60dB
Max input: +22dB
Channel fader range: -85dB to +10dB
Monitor send range: -85dB to 0dB
Effect send range: -85dB to 0dB
Hi shelving: 12kHz, ±15dB, Q fixed at 2 Oct
Mid shelving: 350Hz - 8kHz, ±15dB, Q fixed at 1 Oct
Low shelving: 120Hz, ±15dB, Q fixed at 2 Oct
Channel insert Max in/Out: +22dBµ
Channel to channel cross talk: better than -95dB (1kHz)
LINE input max input: +22dBµ
PLAY input max input: +10dBµ
LINE input gain range: -85dB to 0dB
EFFECT
Max effect send/return: +10dBµ
Tone: ±12dB, 8kHz
Send & Return gain range: -85dB to 0dB
MONITOR OUTPUT
Max output: +22dBµ
Hi shelving: ±15dB, 8kHz
Low shelving: ±15dB, 120Hz
MIXER OUTPUT
Max output: +22dBµ balanced XLR & unbalanced 6.35mm
7 band stereo EQ: 2.5 multiple freq, Q fixed at 10 Oct. ±12dB
Signal to noise ratio: 90dB
THD: 0.01%, 1kHz
Freq response: 10Hz to 120kHz, ±3dB
Dimensions (mm): 90H x 510L x 405D
Weight: 7.5kg
*Specifications subject to change without notice
|
